    Portable Geological Drilling Rig Compact High Rigidity Mechanical Transmission

    Portable Geological Drilling Rig Compact High Rigidity Mechanical Transmission

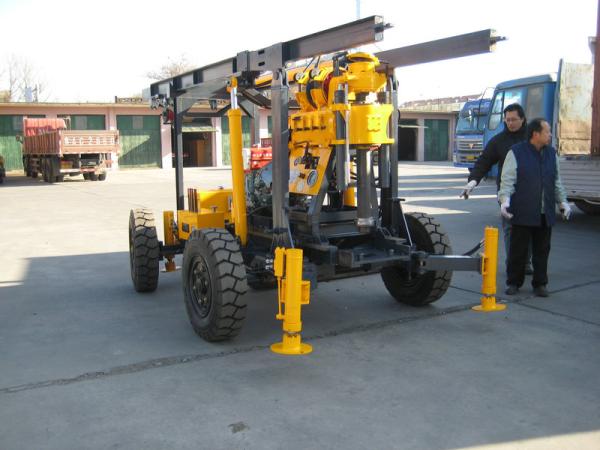

    The trailer is equipped with radial tyes, and four hydraulic supporting jacks, which is used for leveling the drill before working and strength the stability of rig.


    Main feature:


    Compact size and light weight of mechanical transmission, larger diameter of rotating unit's spindle , long distance of support span and good rigidity, hexagonal Kelly ensure the torque transfer.

    Series spindle type core drilling rigs are mounted on trailer with four hydraulic jack, mast raise by hydraulic cylinder. Which are mainly used for diamond drilling and carbide drilling of solid bed, also can be uses in exploring drilling and base or pile hole drilling.

    Specification



    Fundamental parameters


    Unit

    XYT-200

    XYT-2B

    XYT-3B

    Drilling depth

    m

    280

    300

    600

    Drilling diameter

    mm

    60-380

    80-520

    75-800

    Rod diameter

    mm

    50

    50/60

    50 60

    Drilling angle

    °

    0-90

    70-90

    70-90

    Overall dimension

    mm

    4460x1890x2250

    4460x1890x2250

    5000x2200x2300

    Rig weight

    kg

    3320

    3320

    4120

    Skid


    /

    /

    Rotation unit



    Spindle speed



    Co-rotation

    r/min

    88, 197, 296, 399, 655, 888,

    70, 146, 179, 267, 370,

    450, 677, 1145,

    75, 135, 160, 280, 355, 495, 615, 1030,

    Reverse rotation

    r/min

    66, 147

    70, 155

    64, 160

    Spindle stroke

    mm

    510

    550

    550

    Spindle pulling force

    KN

    49

    68

    68

    Spindle feeding force

    KN

    29

    46

    46

    Maximum output torque

    N.m

    1700

    2550

    3500

    Hoist



    Lifting speed

    m/s

    0.31, 0.72, 1.06??

    0.64, 1.33, 2.44

    0.31, 0.62, 1.18, 2.0

    Lifting capacity

    KN

    20

    25, 15, 7.5

    30

    Cable diameter

    mm

    12

    15

    15

    Drum diameter

    mm

    170

    200

    264

    Brake diameter

    mm

    296

    350

    460

    Brake band width

    mm

    60

    74

    90

    Frame moving device



    Frame moving stroke

    mm

    420

    420

    420

    Distance away from hole

    mm

    250

    300

    300

    Hydraulic oil pump





    Type


    YBC12-125 (left)

    CB-25

    CBW-E320

    Rated flow

    L/min

    18

    40

    40

    Rated pressure

    Mpa

    10

    8

    8

    Rated rotation speed

    r/min

    2500



    Power unit



    Diesel engine



    Type


    L28

    N485Q

    CZ4102

    Rated power

    KW

    20

    24.6

    35.3

    Rated speed

    r/min

    2200

    1800

    2000


    The hydraulic mast is composed of main mast and mast extension, which greatly improve working efficiency, and are very easy for transportation and operation. Compared with common core drilling rig, trailer type core drilling rigs have put off heavy derrick and save cost. With high and optimum rotating speed, the rig can meet various requirement of small diameter diamond drilling, large diameter carbide drilling and all kinds of the engineering hole drilling.During the feeding process, the hydraulic system could adjust the feeding speed and pressure to meet requirments of drilling in various stratums. A bottom-hole pressure gauge is equipped to monitor the drilling pressure. Automobile type transmission and clutch is equipped to achieve good commonality and easy maintenance.Centralized control panel makes operation convenient.The octagonal structure spindle is more suitable to transmission in large torque.
