    TR400 Heavy Construction Machine Bored Piling Equipment Hydraulic Earth Piling Rig

    Ask Lasest Price
    Brand Name : SINOVO
    Certification : CE/GOST/ISO9001
    Model Number : TR400
    Delivery Time : ON STOCK
    Payment Terms : T/T&L/C
    • Product Details
    • Company Profile

    TR400 Heavy Construction Machine Bored Piling Equipment Hydraulic Earth Piling Rig

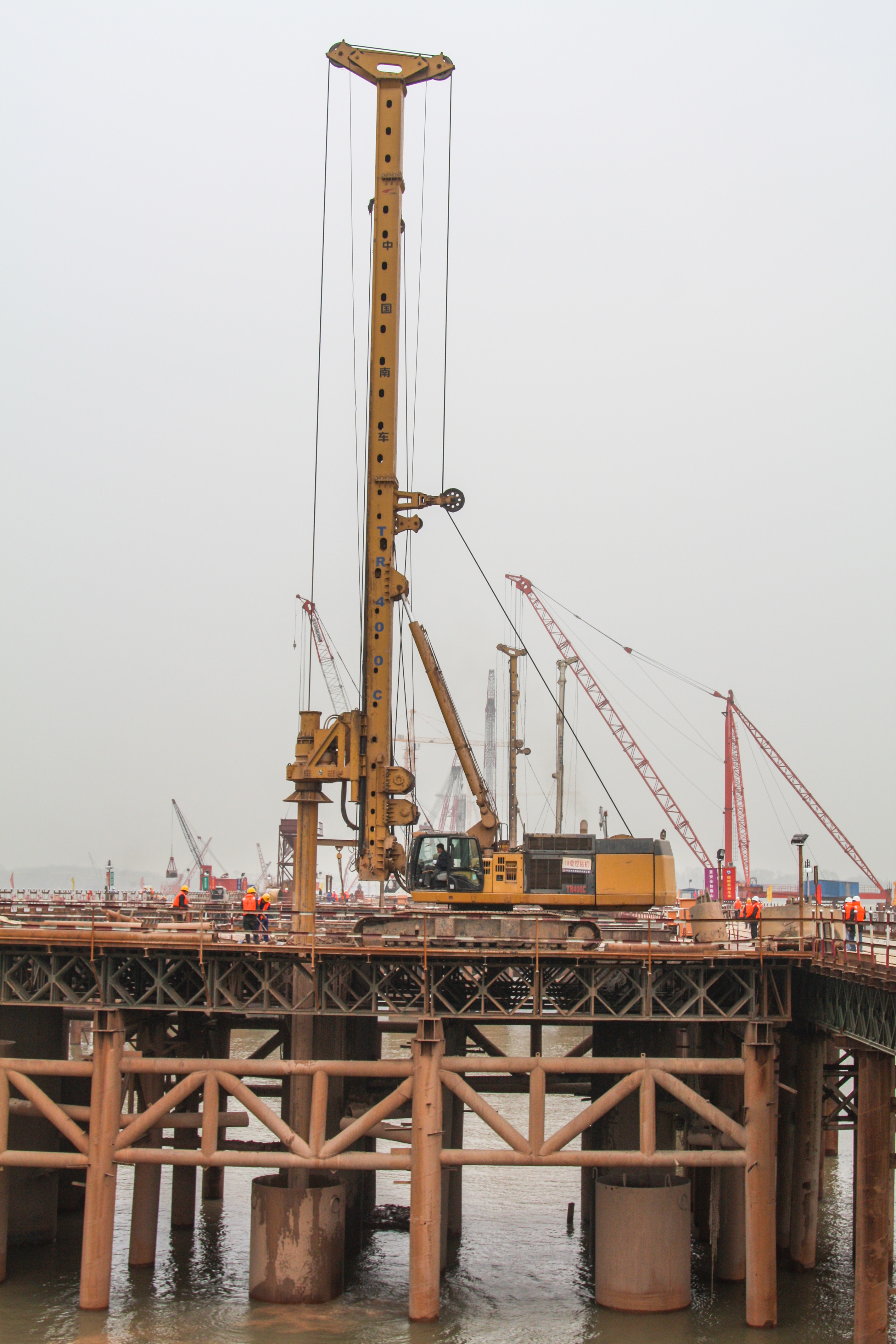

    TR400 Rotary Drilling Rig Rotary Drilling Rigs mounted on original CAT Chassis Max torque 400kN.m


    TR Series rotary drilling rigs are designed with latest advanced technology composed of advantages based on Caterpillar undercarriage, which are the most versatile and used for deep foundation drilling, such as construction of railway, highway, bridge and skyscraper. Max depths of piling can reach more than110m and Max Dia. can reach 3.5 m The rotary drilling rigs can be specially equipped with telescopic friction & interlocking Kelly bar, and casing oscillator for suiting the following applications: Cased bore piles with casing driven adapter through rotary head or optionally by casing oscillator powered by the base carrier itself; Deep bored piles stabilized by drilling fluid or dry hole; Soil Displacement Piling System.


    TR400-Technical Parameters
     Euro StandardsU.S. Standards
    Max drilling depth110m361ft
    Max hole diameter3000mm118in
    Engine modelCAT C-15CAT C-15
    Rated power302KW405HP
    Max torque400kN.m294920lb-ft
    Rotating speed6~23rpm6~23rpm
    Max crowd force of cylinder400kN89920lbf
    Max extraction force of cylinder400kN89920lbf
    Max stroke of crowd cylinder12000mm472in
    Max pulling force of main winch350kN78680lbf
    Max pulling speed of main winch65m/min213ft/min
    Wire line of main winchΦ36mmΦ1.4in
    Max pulling force of auxiliary winch120kN26976lbf
    UndercarriageCAT365CCAT365C
    Track shoe width1000mm39in
    Width of crawler3900-5500mm154-217 in
    Whole machine weight110T

    110T


    Main Features:

    • - High stability and quality original caterpillar base
    • - Compact powerful rotary head
    • - Emergency mode of operation for engine
    • - PCL controller for all electrically actuated functions, colorful LCD display
    • - Mast support unit
    • - Original Patented driving structure of double motors and double reduces
    • - Controlled free-fall main and auxiliary winch
    • - Innovative enhanced electro-hydraulic proportional system
    • -Ease of transport and quickly assemblly

    Our advantage


    1. Manufactuer of the most complete series of small and medium rotary drilling rig.


    2. Series drilling rigs have passed CE& ISO9001. GOST certification.


    3. 30 people R&D team with an average of 15 years rich experience.


    4. Oversea after-sales sevice and bulid up branchs in Singapore. Middle east. Africa and Euopre.


    5. Provide customized services
