    Piling Works TR100D Foundation Drilling Rig China Chassis Hydraulic Portable

    Ask Lasest Price
    Brand Name : SINOVO
    Model Number : TR100
    Certification : CE/GOST/ISO9001
    Delivery Time : ON STOCK
    • Product Details
    • Company Profile

    Piling Works TR100D Foundation Drilling Rig China Chassis Hydraulic Portable

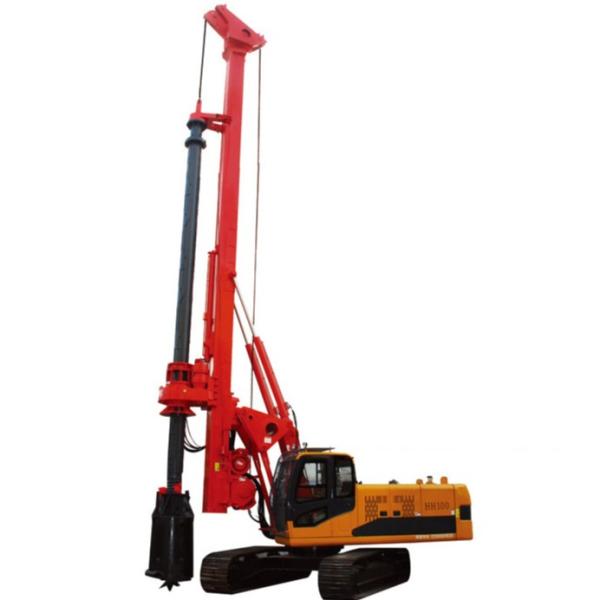

    TR100 Rotary Drilling Rig With Max Drilling Depth 32 m and Drilling Diameter 1200mm


    Features and advantages of TR100:


    1. The power head has the function of high-speed soil rejection; the maximum speed can reach to 70r/min. It completely solves the problem of soil rejection difficulty for small diameter pile hole construction.


    2. It is no need to disassemble the drill pipe before transporting which is transition convenient. The whole machine can be transported together.


    3. All the key parts of the electric control system (such as display, controller, and the inclination sensor) adopt imported components of international famous brands EPEC from Finland, and use air connectors to make special products for domestic projects.


    4.The width of chassis is 3m which can work stability. The superstructure is optimizing designed; engine is designed at the side of the structure where all components are located with rational layout. The space is large which is easy for maintenance. The design can avoid the narrow space defects which the machine is modified from an excavator.


    TECHNICAL DATA TR100


    Engine
    ModelmodelCummins QSB4.5-C60-30
    Rated power/SpeedKW/rpm119/2200
    Rotary Drive
    Max torque of rotary headkN.m100
    Drilling speedr/min0-70
    Spin off speedr/min70
    Main performances
    Max drilling depthm32
    Max hole diametermmΦ1200
    Pull-Down Cylinder
    Max. pushkN100
    Max. pullkN120
    Storkemm2000
    Main winch
    Max pull force of main winchkN110
    Max pull speed of main winchm/min70
    Wire line diameter of main winchmm20
    Vice winch
    Max pull force of vice winchkN40
    Max pull speed of vice winchm/min40
    Wire line diameter of vice winchmm10
    Mast inclination
    Mast side raking4
    Mast forwards4
    Mast backwards15
    Undercarriage
    Max traveling speedkm/h2
    Max turnning speedr/min3
    Chassis widthmm3000
    Crawler grounding lengthmm3450
    Tracks widthmm600
    Working pressureMpa32
    Over weightT30
    Dimension
    Working position (LxWxH)mm6900x3000x1340
    Travel position (LxWxH)mm12000x3000x3400

    Q: What kind of product certification do you have?

    A: All our products have passed ISO9001 and CE certifications and we also perform strict quality inspection process including a load test for every machine before shipment.


    Q: Do you have after sales service?

    A: Yes, we have oversea service team which will offer you professional guidance. If you request, we can dispatch our engineer to your jobsite to training for your staff. For the chassis, eg CAT chassis, we take advantage of their global presence to ensure prompt after service support.


    Q: How about the warranty policy ?

    A: Most of our products support 1 year or 12month warranty after shipment, please consult customer service for specific products
