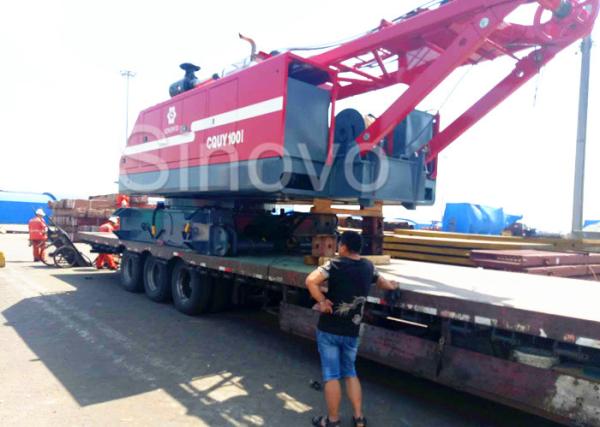

    Hydraulic Crawler Crane CQUY100I 100Ton Lattice Boom Crane with Cummins QSL.9209/2000KW/rpm for sale

    Ask Lasest Price
    Brand Name : SINOVO
    Model Number : CQUY100I
    Certification : CE/GOST/ISO9001
    Payment Terms : T/T&L/C
    Delivery Time : 7-10 Work days
    Price : Negotiation
    Supply Ability : 30 units per month
    • Product Details
    • Company Profile

    Hydraulic Crawler Crane CQUY100I 100Ton Lattice Boom Crane with Cummins QSL.9209/2000KW/rpm for sale

    Hydraulic Crawler Crane CQUY100I 100Ton Lattice Boom Crane for sale


    Main technical features:


    CQUY100I hydraulic crawler crane has strong hoisting capacity, big lifting weight, good anti-slip property, lower roadbed requirement,which is widely used for the big factory construction working such as petrochemical industry,electircity, metallurgy, chemical industry and nuclear energy.


    In order to meet the market demands and improve product's cost performance, our company designed the crawler crane for the high-end users based on the many years of construction machinery's production experience, This product has a good lifting performance,360° turning and telescopic crawler.The length of main body is 13-58m,length of fixed auxiliary boom is 9-18m.


    Brief Introduction of CQUY100I


    1.CQUY100I hydraulic crawler crane adopts CUMMINS QSL-9 Diesel Engine,up to Euro III emission standard, with advantages of the reliable power and economy.


    2.Key components adopt famous international brands;main pump.motor are from Rexroth, hydraulic pipe and joints are from USA's Parker.


    3.Both the main and the auxiliary lifting winch has equipped with unique free fall function. The max pull capacity in single lay can achieve 18t. Service grade designed according to M7 level, both winches can be worked simultaneously with less fuel consumption and more effective operation.


    4.Open-type pump-controlled variable system, constant power control, independent heat dissipation.


    5.Boom backbone tube adopts high-strength thin boom steel tube from Germany's Mannesmann, with the light weight and high loading capacity, which greatly lifting capacity.



    Technical Data


    Model: CQUY100I
    Max.rated lifting capacity:100t

    Descriptions

    Unit

    Data

    Length of standard boom

    m

    16~73

    Length of fixed jib

    m

    13~25

    Max.length of boom plus fixed jib

    m

    61+25

    Working speed

    Rope speed

    Hoist

    m/min

    ※High 116/57
    Low 82/41

    lower

    m/min

    ※High 116/57
    Low 82/41

    Boom rise

    m/min

    ※54

    Boom lower

    m/min

    54

    Swing speed

    r/min

    0~1.96

    Travel speed

    km/h

    0.9~1.3

    Main lifting multiplying power

    12

    Max.single line pull

    8.33

    Gradeability (with basic boom

    and the cab in the rear)

    %

    30

    Rated power output/rotation speed of diesel engine

    KW/r/min

    Cummins QSL-9 209/2000

    Weight of whole machine (with basic boom)

    t

    103

    Ground pressure(with basic boom)

    MPa

    0.07

    Counterweight

    t

    34
