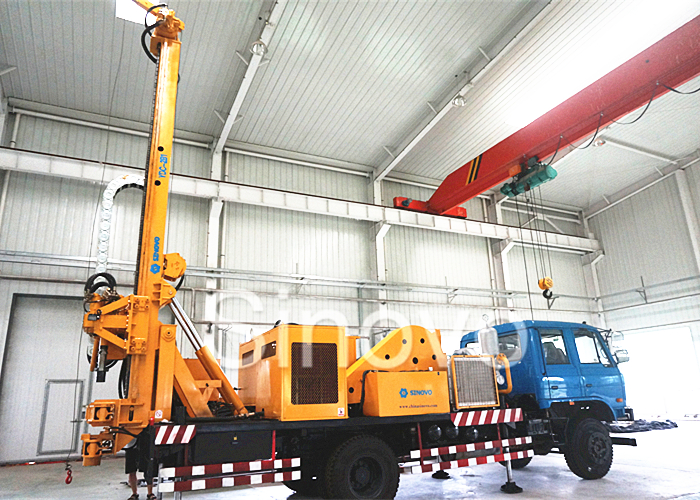

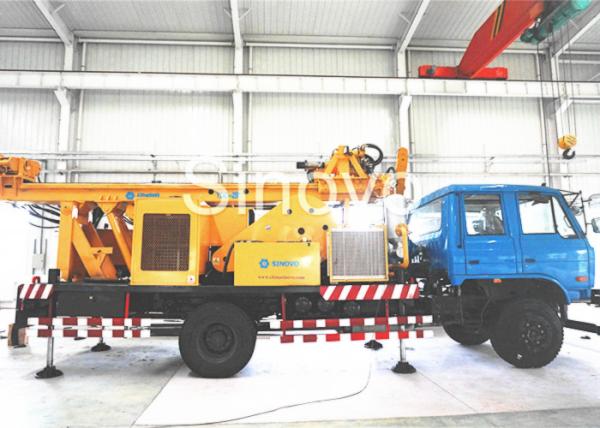

    Multi-functional Full Hydraulic Waterwell Drilling Rig / core drilling rig, drilling Depth 650m

    Ask Lasest Price
    Brand Name : SINOVO
    Model Number : YDC-2B1
    Certification : CE/GOST/ISO9001
    Payment Terms : L/C or T/T
    Delivery Time : ON STOCK
    Price : Negotiation
    Supply Ability : 12 units/month
    • Product Details
    • Company Profile

    Multi-functional Full Hydraulic Waterwell Drilling Rig / core drilling rig, drilling Depth 650m

    YDC-2B1 Waterwell Drilling Rig Drilling Capacity drilling Depth 650m


    A water well drilling rig is a rig used for drilling water wells,installing underground pipes and cleaning wells.It is mainly composed of power unit,drill bit,drill rod,core barrel,drill stand etc.Generally,there are three types of water well drilling rig,which are rotary drill,percussion drill and combination drill.


    YDC-2B1 drilling rig is a kind of medium and high efficient full hydraulic multi-functional water well drill rig, the mainly drilling method is muddy wheel rotary drilling, and DTH Hammer Drill is an auxiliary, can meet the drilling requirements of different geological conditions drilling and other vertical holes. It is widely used in engineering construction for drilling wells, monitoring wells and ground-source heat pump air-conditioner, and also applied in hole blasting, bolting and anchor cable, ect.

    Features and advantages of YDC-2B1
    1.Guide lane matches with roller skate, it can reduce the sliding resistance, and also reduce friction and
    improve the lifetime of extension guide.
    2.Hydraulic power head and a hydraulic rotary disc motor chain, drilling and hydraulic winch binding, new
    drilling method, reasonable power matching.
    3.Set covering layer, stratum two kinds of method in one construction drill.
    4.Traveling to tracked self-propelled structure, optional 6*6 or 8*4 heavy truck to car type well drilling.
    5.The rig is very convenient with air compressor and DTH hammer, using compressed air DTH hammer
    drilling technology, complete the bedrock drilling operation.
    6.The rig is equipped with patent technology hydraulic rotary disk, mud pump, hydraulic winch, the mud can be completed normal circulation drilling technology.
    7.Two-speed hydraulic regulation is used in rotary, thrust, lifting, shall make drilling specification more match with well working situation.
    8.Hydraulic system equipped with separate air-cooled hydraulic oil cooler, and can optional install water
    cooler to ensure hydraulic system keep continuous and efficient operation under the high-temperature
    weather conditions of different regions.
    9.Four strengthened hydraulic jacks can become self loading system, to ensure rotation easy and save lifting costs.

    Specifications

    Max.drilling depthm650
    Drilling diametermm200-350
    Hole diameter of covering layermm300-500
    Length of drill rodm4.5
    Diameter of drill rodmmФ102/89
    Axial pressureKN400
    Lifting forceKN400
    Slow down, slow speedm/min9.2
    Rise fast, fast forward speedm/min30
    Truck ChassisHOWO 8*4/6*6
    Power head of rotary torqueN.m20000
    Rotary speedrpm0-120
    Engine power (Cummins engine)KW160
    Mud Pump DisplacementL/min850
    Mud Pump PressureMpa5
    Overall dimensionmm10268*2496*4200
    Weightt18
