    Real-time Data Display Rotary Drilling Rig Portable Micro Hydraulic Piling Rig Machine TR180F

    Ask Lasest Price
    Brand Name : SINOVO
    Model Number : TR180F
    Certification : CE/GOST/ISO9001
    Payment Terms : T/T/& L/C
    Delivery Time : ON STOCK
    • Product Details
    • Company Profile

    Real-time Data Display Rotary Drilling Rig Portable Micro Hydraulic Piling Rig Machine TR180F


    TR180F Rotary Drilling Rigs with electric system Wireless transmission system GPS remote service drilling depth 57.5m


    TR180F Rotary drilling rig is mainly used in the construction of civil and bridge engineering,it adopts advanced intelligent electronic control system and load sensing type pilot control hydraulic system,the whole machine is safe and reliable.


    Main Features:

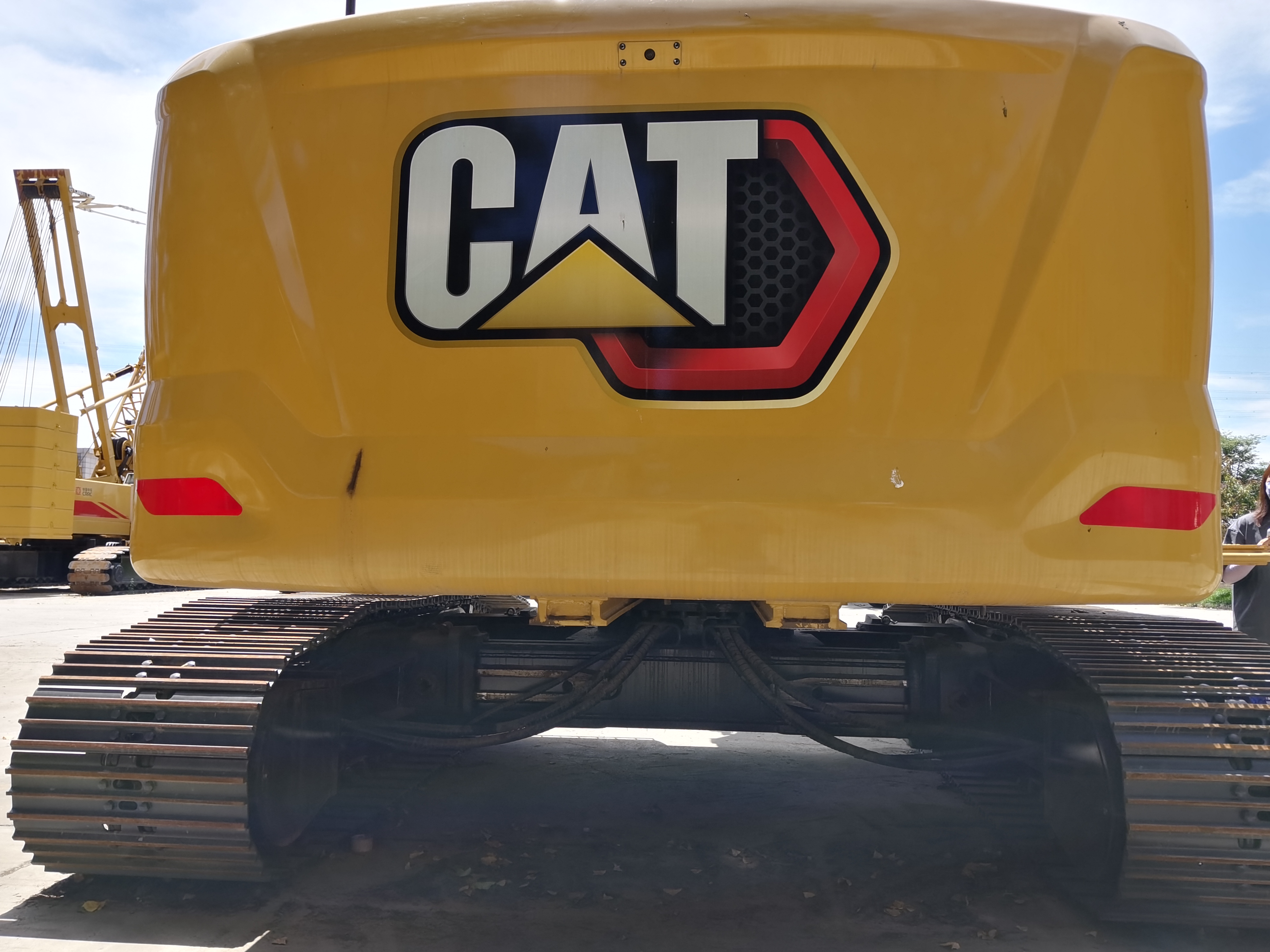

    • Mounted on original Caterpillar 329D base,weight back to ensure the stability of the whole machine
    • Adopts CAT C7 engine with ACERT TM Technology offers more engine power and runs at lower speeds for better fuel efficiency and reduced wear, more environmentally,lower noise,little vibration,optimal machine performance,more power output,less emission and makes the cost for drilling reduced.
    • PCL controller for all electrically actuated functions, colorful LCD display
    • Compacted Parallelogram structure to reduce the length and height of the whole machine,reduce the machine's request for the work space,easy for transportation.
    • Electric system Wireless transmission system and GPS remote service

    Technical Data:


    Crowd Cylinder


    Overall height46.5 ton
    Operation weight (with kelly)52 ton
    Rotary Drive
    Nominal torque180 kNm
    Speed of rotation6-35 rpm
    Crowd system
    Crowd force push/pull150/160 kN
    Stroke (Kelly system)40000 mm
    Speed down/up5/6 m/min
    Main winch
    Line pull (1 st layer)165 kN
    Rope diameter/length26 mm/90 m
    Line speed max78 m/min
    Auxiliary winch
    Line pull (1 st layer)50 kN
    Rope diameter/length16 mm/45 m
    Line speed max75 m/min
    Mast inclination
    Backward/forward/lateral15/5/5

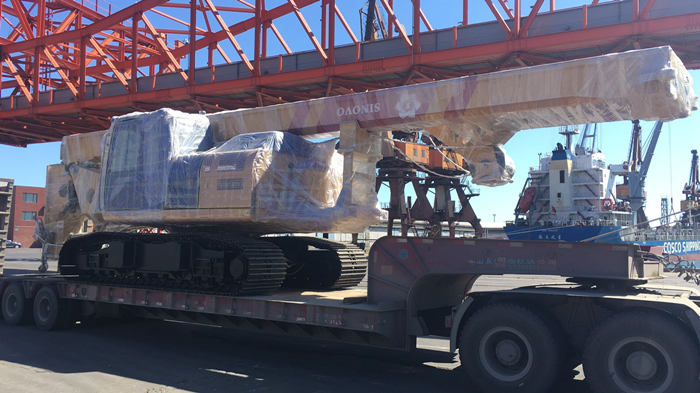

    Shipment;



    Tools:Friction kelly bar and bucket



    Sinovo Intelligent developed the rotary excavating series products with the most complete spectrums in China, with power head output torque ranging from 40KN to 420KN.M and construction bore diameter ranging from 350MM to 3,000MM. Its theoretical system has formed the only two monographs in this professional industry, namely Research and Design of Rotary Drilling Machine and Rotary Drilling Machine, Construction and Management.

    Sinovo's rotary drilling rigs are designed with latest advanced technology composed of advantages based on Caterpillar undercarriage, which are the most versatile and used for deep foundation drilling, such as construction of railway, highway, bridge and skyscraper. Max depths of piling can reach more than 110m and Max Dia. can reach 3.5 m


    Our advantage

    1. Manufactuer of the most complete series of small and medium rotary drilling rig.

    2. Series drilling rigs have passed CE& ISO9001. GOST certification.

    3. 30 people R&D team with an average of 15 years rich experience.

    4. Oversea after-sales sevice and bulid up branchs in Singapore. Middle east. Africa and Euopre.

    5. Provide customized services
