    Easy Operation SPA5 Hydraulic Pile Breaker Can Break Round Pile (300-1200mm) And Cutting 60piles/8h

    Easy Operation SPA5 Hydraulic Pile Breaker Can Break Round Pile (300-1200mm) And Cutting 60piles/8h




    The SPA5 hydraulic pile breaker has the following features:


    1.Environment-friendly: Its full hydraulic drive causes little noises during operation and no influence on the surrounding environments.
    2. Low-cost : The operating system is easy and convenient.Fewer operating workers are required to save cost for labor and machines maintenance during construction.
    3. Small volume: It's light for convenient transportation.
    4. Safety: Contact-free operation is enabled and it can beapplied for construction on complex land form.
    5. Universal property: It can be driven by diverse power sources and is compatible with excavators or hydraulic system according to the construction sites conditions. It is flexible to connect multiple construction machines with universal and economical performance. The telescopic sling lifting chains meet the requirements of various landforms.
    6. Long service life: It is made of military material by firstclass suppliers with reliable quality, extending its service life.
    7. Convenience: It's small for transportation. Replaceable and changeable module combination makes its applicable for piles with various diameters. The modules can be assembled and disassembled easily and conveniently.


    SPA5 Hydraulic pile breaker which can break round pile (300-1060mm) with 12pcs of moduel.

    1.Max drill rod pressure: 485kN
    2.Max cylinder stroke: 150mm
    3.Max cylinder pressure: 31.5MPa
    4.Max sigle cylinder flow: 25L/min
    5.Quanity/8h: 60 pcs/8h
    6.Single cut pile height≦300mm
    7.One-piece moudule weight: 210kgs
    8.One-piece moudule size: 895x715x400mm
    9.Work status dimensions wih 12pcs of moduel: 2670x400mm
    10.Total weight: 2.5t

    The cylinder is installed from the structural part’s top to its end. The force goes to the whole structural parts, protect the bolt from breaking off.

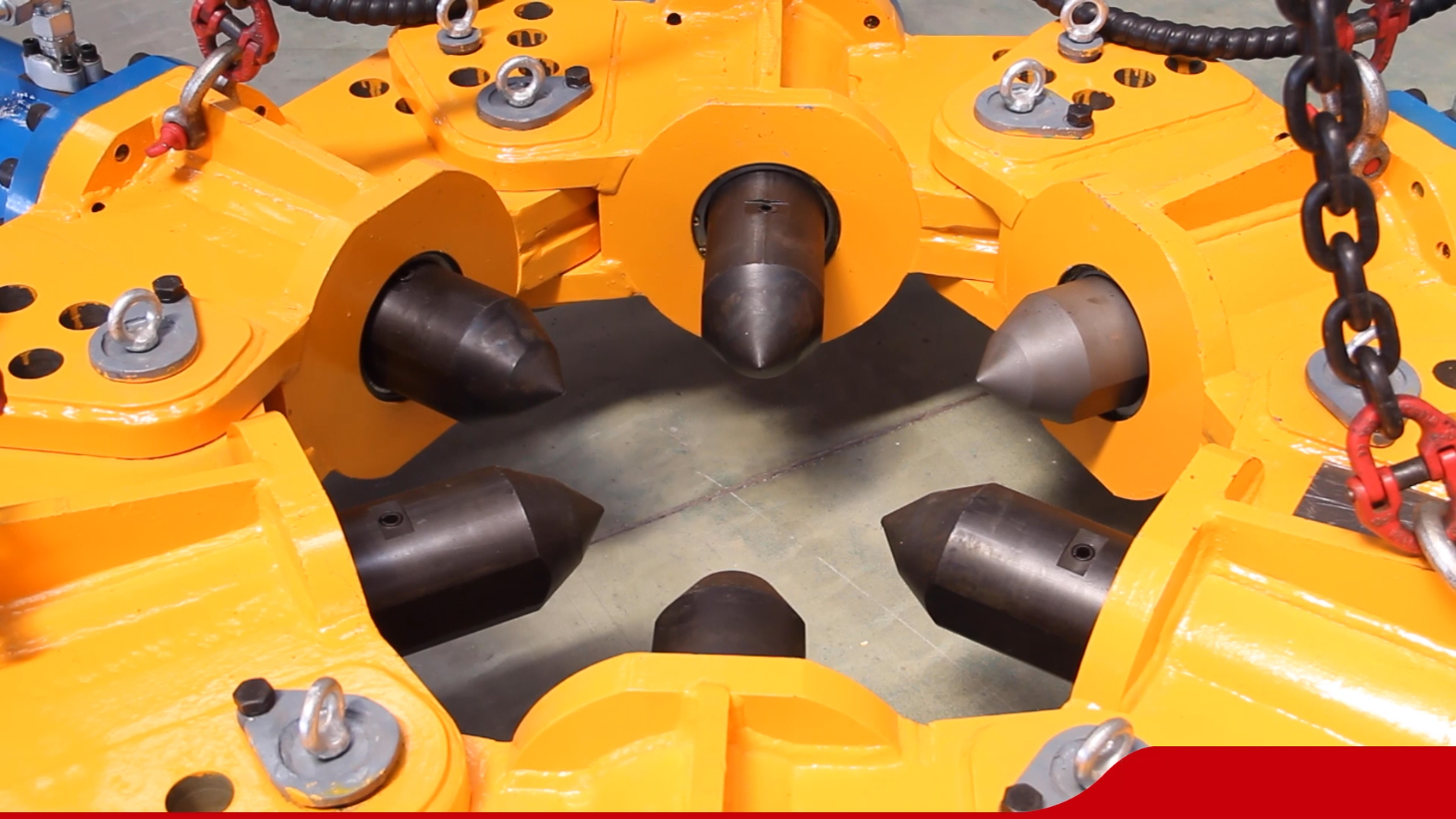

    The alloy bit and cylinder are connected in the middle of the alloy bit. Uniformly forced, the machine won’t be damaged during working. The material of our alloy bit is military use alloy steel, with higher strength and longer using life, it can cut 5000 nos. of piles.

    Chain: Professional hoisting chain with single lifting capacity of 5t, diameter 14mm,offering high safety guarantee. Equipped with adjusting buckles, the chain’s length could be adjusted according to jobsite condition easily

    Structural parts—Both the material and techniques are more matured, with high standard quality control and long service life.

    The two pins are used for fixing the modules and have the limit role, which is not only instead of top metal ring frame to reduce weight of the whole machine, but also avoid the pile colliding the top metal ring frame during the pile breaking.


    Construction's Parameters:


    ModelSPA5
    Range of Pile diameter (mm)Ф1050-Ф1200
    Maximum Drill rod pressure485kN
    Maximum stroke of hydraulic cylinder150mm
    Maximum pressure of hydraulic cylinder31.5MPa
    Maximum flow of single cylinder25L/min
    Cut the number of pile/8h60
    Height for cutting pile each time≦ 300mm
    Supporting the digging machine Tonnage (excavator)

    ≧ 20t


    One-piece module weight210kg
    One-piece module size895x 715 x 400mm
    Work status dimensionsФ2670x 400
    Total pile breaker weight2.5t

    Module numbersThe diameter range (mm)Platform weight(t)Total pile breaker weight(kg)Height of single crush pile(mm)
    7250-450121470300
    8400-600131680300
    9550-750151890300
    10700-9000182100300
    11900-1050212310300
    121050-1200262520300


    Connection with excavator


    Connection one


    Depending on the type of excavator, shovel bucket if there is a hole for hoist, will put the pile breaker by lifting shackle directly on the bucker.The assembly is convenient, reducing the weight of the bucket lifting force and the waste of power.


    Connection two


    When unloading the bucket make pile breaker through the rings in a bucket of pin roll.This dramatically increases the lifting force, saving power and lowering costs (two hoisting rings are connected by wire ensure the safety of the hoisting process)
