    Reliability VY320A Hydraulic Static Pile Driver high piling efficiency

    Ask Lasest Price
    Brand Name : SINOVO
    Model Number : VY320A
    Certification : CE/GOST/ISO9001
    Payment Terms : T/T&L/C
    Delivery Time : ON STOCK
    • Product Details
    • Company Profile

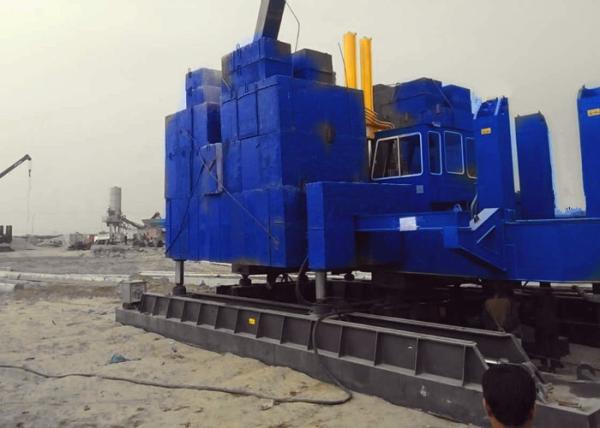

    Reliability VY320A Hydraulic Static Pile Driver high piling efficiency

    Reliability VY320A Hydraulic Static Pile Driver high piling efficiency


    VY series hydraulic static pile driver is a new pile foundation , using the powerful static pressure of the oil produced, smooth and quiet pressing prefabricated pile fast sinking. Easy operation, high efficiency, no noise and gas pollution, when pressed pile foundation, construction of soil disturbance small scope and extent of control for easy operation, good construction quality and other characteristics. VY series hydraulic static pile driver has been widely used in many areas, especially in coastal urban construction and transformation of the old pile.


    Sinovo Hydraulic Static Pile Driver enjoys the common feafures of pile dirver such as high efficiency,energy saving, environmental-friendly and so on. Besides, we have more unique technique characteristics as following:


    • Unique design of clamping mechanism for each jaw to be adjusted with the shaft bearing surface to ensure the largest contact area with the pile,avoid damaging the pile.
    • Unique design of side/corner piling structure, improves the capacity of side/corner piling,the pressure force of side/corner piling up to 60%-70% of main piling. The performance is much better than hanging side/corner piling system.
    • Unique clamping pressure-keeping system can automatically fill in the fuel if the cylinder leak oil,ensuring high reliability of clamping pile and high quality of construction.
    • Unique terminal pressure-stabilized system ensures no float to the machine at rated pressure,greatly improving the safety of operation.
    • Unique walking mechanisim with lubrication cup design could realize durable lubrication so as to extend serivice life of rail wheel.
    • Constant & high flow power hydraulic system design ensures high piling efficiency.

    Main Technical Parameter


    Model: VY320A



    Parameter


    Max. piling pressure(tf)320

    Max. piling

    speed (m/min)

    Max6.8
    Min0.93
    Piling stroke (m)1.6

    Move

    stroke (m)

    Longitudinal Pace3.6

    Horizontal

    Pace

    0.6
    Slewing angle(°)10
    Rise stroke (mm)1000

    Pile type

    (mm)

    Square pile

    F300-F500

    Round pile

    Ø300-Ø500

    Min. Side Pile Distance(mm)1000
    Min. Corner Pile Distance(mm)1250
    CraneMax. hoist weight (t)12
    Max. pile length (m)14
    Power(kW)Main engine60
    Crane engine30

    Overall

    Dimension

    (mm)

    Work length12500
    Work width6280
    Transportation height3200
    Total weight (t)322
