    Cylinder Stroke 230mm Machine Pile Breakers Hydraulic System 31.5MPa To Break Round P[ile, Cut Pile Head

    Ask Lasest Price
    Brand Name : SINOVO
    Model Number : SPA8
    Certification : CE/ISO/SGS
    Payment Terms : T/T, L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Delivery Time : STOCK
    Price : Negotiation
    Supply Ability : 30 sets per month
    • Product Details
    • Company Profile

    Cylinder Stroke 230mm Machine Pile Breakers Hydraulic System 31.5MPa To Break Round P[ile, Cut Pile Head

    Environment Friendly break pile machine Hydraulic Pile Breaker SPA8



    SPA/F Hydraulic Pile Breakers Basic Information:


    The leading hydraulic pile breaker with five patented technologies and adjustable chain, it is the most efficient equipment to break the foundation plies. Due to the modular design, the pile breaker can be used for breaking different sizes of piles. Equiped with the chains, it can work with different equipments to break piles.


    Feature:


    The hydraulic pile breaker has the following features: easy operation, high efficiency, low cost, less noise, more safty and steadibility. It imposes no impact force on the parent body of the pile and no influence on the bearing capacity of the pile, and shortens the construction period greatly.
    It is applicable for pile-group works and is recommended strongly by the construction department and the supervision department.


    SPA8 Hydraulic pile breaker which can break square pile (1450-1600mm) with 11pcs of moduel.
    1. Max drill rod pressure: 790kN
    2. Max cylinder stroke: 230mm
    3. Max cylinder pressure: 31.5MPa
    4. Max sigle cylinder flow: 25L/min
    5. Quanity/8h: 30-100 pcs/8h
    6. Single cut pile height≦300mm
    7. One-piece moudule weight: 410kgs
    8. One-piece moudule size: 930x840x450mm
    9. Work status dimensions wih 13pcs of moduel: 3700x450mm
    10. Total weight: 5.5t

    Service environment of SPA8 Pile Breaker:


    1. The operation of the device needs power source which can employ fixed pumping stations or other mobile engineering machinery equipment.
    2. Hydraulic system pressure is 31.5MPa, the setting value of overflow valve is 34.4MPa, the diameter of main hydraulic pipe is 25mm and of the cylinder tubing is 20mm.
    3. There are uncertain factors for the engineering machinery and the material composition of pile foundation, and the maximum depth of each pile breaking construction shall be 0.3m.
    4. The number of module, range of pile diameter, tonnage of engineering machinery needed and total weight of machine when the power source using engineering machinery are shown in the following table.

    Module numbersThe diameter range (mm)Platform weight(t)Total pile breaker weight(kg)Height of single crush pile(mm)
    6450-650202460300
    7600-850222870300
    8800-1050263280300
    91000-1250273690300
    101200-1450304100300
    111400-165032.54510300
    121600-1850354920300
    131800-2000365330300

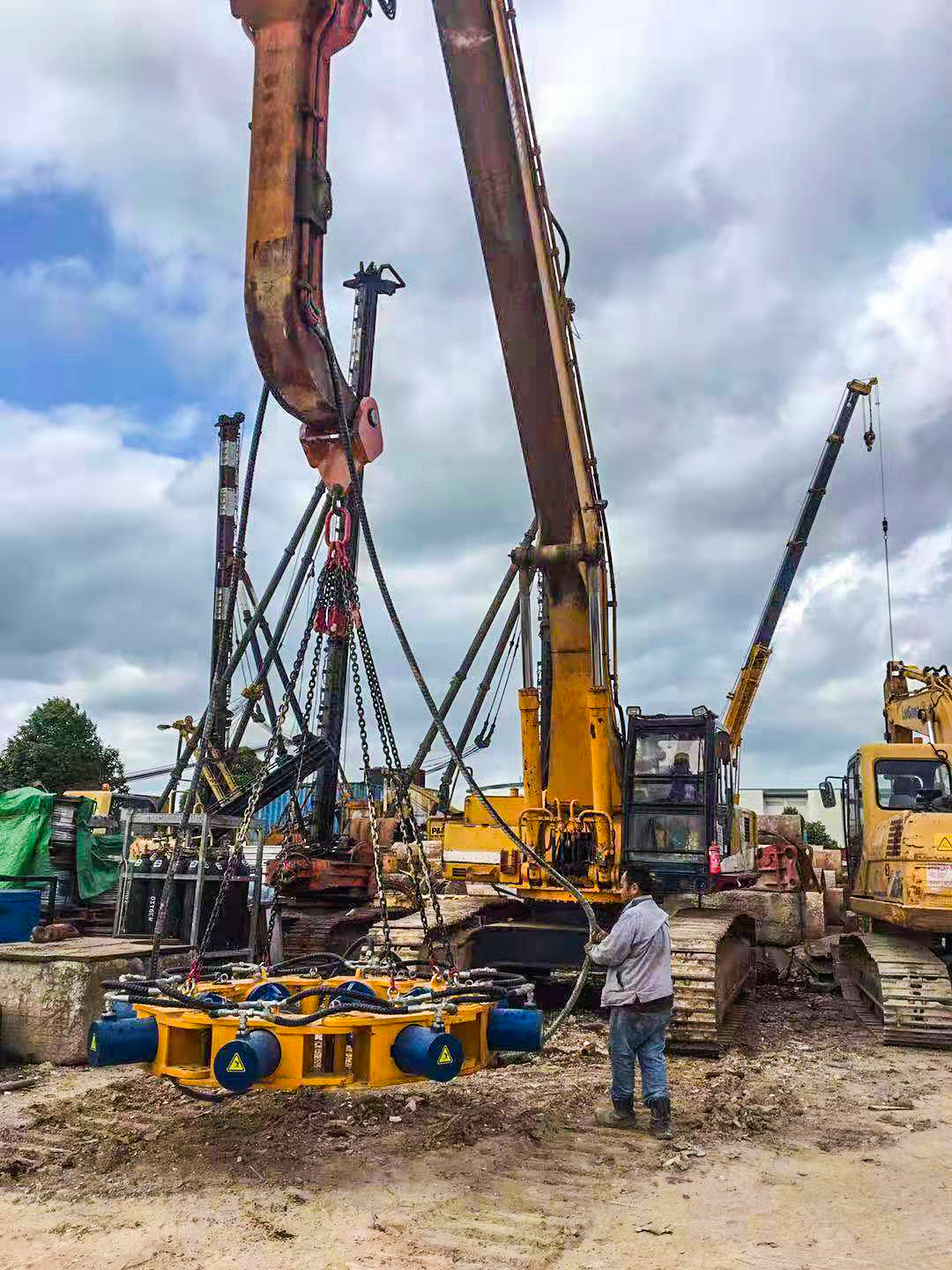

    SPA8 Hydraulic Pile Breaker


    FAQ

    1. When you will send the pile breaker?

    A: We will send pile breaker as soon as possible after payment confirmed.

    2. When I will receive parcel?

    A: The delivery time is about 10 working days,we prefer express delivery,usually takes 3-7 days to delivery by DHL/FedEx/UPS.Container cargo will send by sea freight FOB/CIF,delivery time depends on destination port.

    3. Which payment your company accept?

    A: We accept T/T, Western Union, L/C payment.

    4. What warranty I have?

    A: 6 months warranty,not included human damaged.
