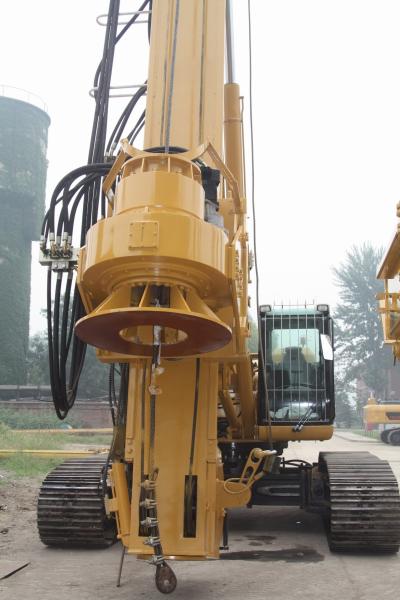

    TR Series Rotary Drilling Rig mounted High Stability Original Caterpillar Base

    Ask Lasest Price
    Brand Name : SINOVO
    Model Number : TR Series
    Certification : CE/GOST/IS9001
    Payment Terms : L/C or T/T
    Delivery Time : ON STOCK
    Supply Ability : 30 unit per month
    • Product Details
    • Company Profile

    TR Series Rotary Drilling Rig mounted High Stability Original Caterpillar Base

    TR Series Rotary Drilling Rig mounted High Stability Original Caterpillar Base

    Sinovo is professional pilling enterprise focusing on the R&D and manufacturing of small and medium-sized piling rigs since 1998, our products approved CE/ ISO9001/ GOST, have a good quality and pretty working performance.


    Rotary Drilling Rigs:


    TR Series rotary drilling rigs are new design with advanced technology composed of advantages based on Caterpillar undercarriage, which are the most versatile and used for deep foundation, such as construction of railway, highway, bridge and skyscraper, Max depths of piling can reach more than 110m and Max Dia. can reach 3.5 m .


    The rotary drilling rigs can be specially equipped with telescopic friction & interlocking Kelly bar, and casing oscillator for suiting the following applications:
    Cased bore piles with casing driven adapter through rotary head or optionally by casing oscillator powered by the base carrier itself;
    Deep bored piles stabilized by drilling fluid or dry hole;
    Soil Displacement Piling System


    Main Features:

    - High stability and quality original caterpillar base
    - Compact powerful rotary head
    - Emergency mode of operation for engine
    - PCL controller for all electrically actuated functions, colorful LCD display
    - Mast support unit

    - Original Patented driving structure of double motors and double reduces
    - Controlled free-fall main and auxiliary winch
    - Innovative enhanced electro-hydraulic proportional system
    - Ease of transport and quickly assembly



    More information of TR Series is as below:


    TR Summary
    TRTorque(KN. m)Max diameter(mm)Max depth (m)
    TR138138kN.m (101747lb-ft)1500mm (59in)50m (164 ft)
    TR160168kN.m (37768lb-ft)1800mm (71in)57.5m (189 ft)
    TR180180kN.m (132714lb-ft)1800mm (71in)60m (197ft)
    TR200200kN.m (147460lb-ft)1800mm (71in)60m (197ft)
    TR220220kN.m (162206lb-ft)2000mm (79in)65m(217ft)
    TR250250kN.m (184325lb-ft)2500mm (98in)80m (262ft)
    TR280280kN.m (206444lb-ft)2500mm (98in)85m (279)
    TR300310kN.m (228563lb-ft)2500mm (98in)95m (312ft)
    TR400400kN.m (294920lb-ft)3000mm (118in)105m (344ft)
    TR500475kN.m (350217lb-ft)4000mm (157in)130m (426 ft)
