    TR280 Rotary Drilling Rig Mounted On Original CAT336D With Max Depth 85m for foundation drilling

    Ask Lasest Price
    Brand Name : SINOVO
    Model Number : TR280
    Certification : CE/GOST/ISO9001
    Delivery Time : ON STOCK
    Price : Negotiation
    Supply Ability : 30 unit per month
    • Product Details
    • Company Profile

    TR280 Rotary Drilling Rig Mounted On Original CAT336D With Max Depth 85m for foundation drilling

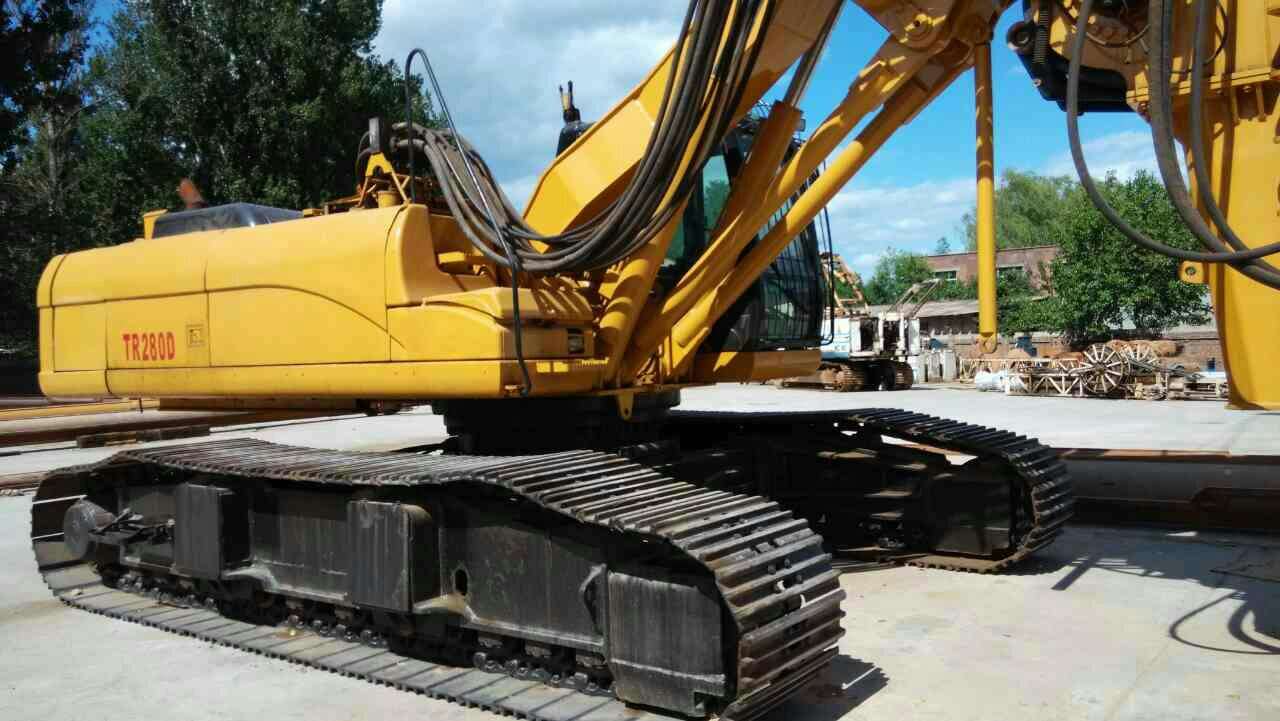

    TR280 Rotary Drilling Rig Mounted On Original CAT336D With Max Depth 85m

    TR280D Rotary Drilling Rigs new design with advanced technology, composed of advantages based on ORIGINAL Caterpillar undercarriage.
    They are the most versatile and used for deep foundation, such as construction of railway, highway, bridge and skyscraper.


    The rotary drilling rigs can be specially equipped with telescopic friction & interlocking Kelly bar, and casing oscillator for suiting the following applications:
    Cased bore piles with casing driven adapter through rotary head or optionally by casing oscillator powered by the base carrier itself;
    Deep bored piles stabilized by drilling fluid or dry hole;
    Soil Displacement Piling System


    Main Features of TR280D Rotary Drilling Rig:

    1. High stability and quality original caterpillar base
    2. Compact powerful rotary head
    3. Emergency mode of operation for engine
    4. PCL controller for all electrically actuated functions, colorful LCD display
    5. Mast support unit
    6. Original Patented driving structure of double motors and double reduces
    7. Controlled free-fall main and auxiliary winch
    8. Innovative enhanced electro-hydraulic proportional system
    9. Ease of transport and quickly assembly

    Technical Parameters
    Euro StandardsU.S. Standards
    Max drilling depth85m279ft
    Max hole diameter2500mm98in
    Engine modelCAT C-9CAT C-9
    Rated power261KW350HP
    Max torque280kN.m206444lb-ft
    Rotating speed6~23rpm6~23rpm
    Max crowd force of cylinder180kN40464lbf
    Max extraction force of cylinder200kN44960lbf
    Max stroke of crowd cylinder5300mm209in
    Max pulling force of main winch240kN53952lbf
    Max pulling speed of main winch63m/min207ft/min
    Wire line of main winchΦ30mmΦ1.2in
    Max pulling force of auxiliary winch110kN24728lbf
    UndercarriageCAT 336DCAT 336D
    Track shoe800mm32in
    Undercarriage width3000-4300mm118-170 in
    Whole machine weight (with kelly bar)78T78T

    Our advantage


    1. Manufactuer of the most complete series of small and medium rotary drilling rig.


    2. Series drilling rigs have passed CE& ISO9001. GOST certification.


    3. 30 people R&D team with an average of 15 years rich experience.


    4. Oversea after-sales sevice and bulid up branchs in Singapore. Middle east. Africa and Euopre.


    5. Provide customized services.
