    Full Hydraulic Core Drilling Rig of Geological Drilling Rig

    Ask Lasest Price
    Brand Name : SINOVO
    Certification : CE/GOST/ISO9001
    Model Number : SHY-5A/5C/6
    Delivery Time : ON STOCK
    Payment Terms : T/T&L/C
    • Product Details
    • Company Profile

    Full Hydraulic Core Drilling Rig of Geological Drilling Rig

    Full Hydraulic Core Drilling Rig of Geological Drilling Rig


    Full hydraulic core drilling rig

    Full hydraulic-mounted trailer and crawler type with hydraulic support mast and legs, widely applied in engineering geological exploration, superficial-zone petroleum and natural gas mining, mine gallery ventilation and water discharge tunnel drilling.


    Main Features:
    -Adapt full hydraulic driving, moving with crawlers itself
    -Drill head is driven by variable motor with function of two-speed mechanical gear shifts, stepless speed change with an advanced and simple structure
    -Rotator is fed and driven with a system connecting the spindle and oil cylinder with chain
    -Mast could be adjusted for its drilling hole with a low center of gravity and good stability
    -Rig provides operator with a nice field of vision and wide and comfortable working condition
    -Diesel engine, hydraulic pump, main valves, motors, crawler reducers and key hydraulic spare parts are all adapted


    famous brands products which are easy to buy and maintenance.
    -Big torque, powerful driving force, rational and practical design,

    lower noisy advanced controlling mode , external appearance,

    a compacted structure, a reliable function, and a flexible operating system.


    SHY-5A Full Hydraulic Core Drilling Rig

    SHY-5A Technical Parameters



    EURO standards

    U.S. standards

    Diesel Engine

    Power

    145kw

    194hp

    Drilling Capacity

    BQ

    1500m

    4921feet

    NQ

    1300m

    4265feet

    HQ

    1000m

    3281feet

    PQ

    680m

    2231feet

    Rotator Capacity

    RPM

    0-1050rpm

    0-1050rpm

    Max. Torque

    4650Nm

    3430lbf.ft

    Max. Lifting Capacity

    15000kg

    33721lbf

    Max. Feeding Power

    7500kg

    16861lbf

    Foot Clamp

    Clamping Diameter

    55.5-117.5mm

    2.2-4.6inch

    Main Hoister Lifting Force(Single rope)

    7700kg

    17310lbf

    Wire Hoister Lifting Force

    1200kg

    2698lbf

    Mast

    Drilling Angle

    45°-90°

    45°-90°

    Feeding Stroke

    3200mm

    126inch

    Slippage Stroke

    1100mm

    43inch

    Other

    Weight

    8500kg

    18739lb

    Transport Way

    Crawler

    Crawler

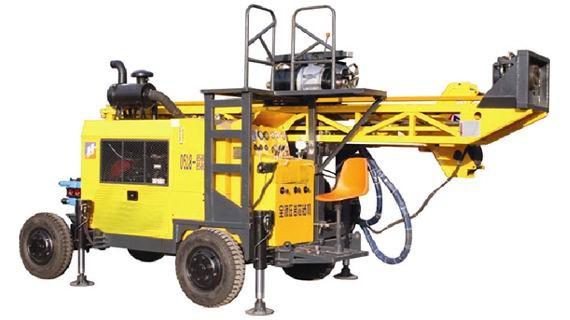

    SHY-5C Full Hydraulic Core Drilling Rig


    SHY-5C Technical Parameters



    EURO standards

    U.S. standards

    Diesel Engine

    Power

    145kw

    194hp

    Drilling Capacity

    BQ

    1500m

    4921feet

    NQ

    1300m

    4265feet

    HQ

    1000m

    3281feet

    PQ

    680m

    2231feet

    Rotator Capacity

    RPM

    0-1100rpm

    0-1100rpm

    Max. Torque

    4600Nm

    3393lbf.ft

    Max. Lifting Capacity

    15000kg

    33721lbf

    Max. Feeding Power

    7500kg

    16861lbf

    Foot Clamp

    Clamping Diameter

    55.5-117.5mm

    2.2-4.6inch

    Main Hoister Lifting Force(Single rope)

    7700kg

    17310lbf

    Wire Hoister Lifting Force

    1200kg

    2698lbf

    Mast

    Drilling Angle

    45°-90°

    45°-90°

    Feeding Stroke

    3200mm

    126inch

    Slippage Stroke

    950mm

    37inch

    Other

    Weight

    7000kg

    15432lb

    Transport Way

    Trailer

    Trailer

    SHY-6 Full Hydraulic Core Drilling Rig

    SHY-6 Technical Parameters



    EURO standards

    U.S. standards

    Diesel Engine

    Power

    175kw

    235hp

    Drilling Capacity

    BQ

    2000m

    6562feet

    NQ

    1600m

    5249feet

    HQ

    1300m

    4265feet

    PQ

    1000m

    3281feet

    Rotator Capacity

    RPM

    0-1100rpm

    0-1100rpm

    Max. Torque

    6400Nm

    4720lbf.ft

    Max. Lifting Capacity

    220kn

    49458lbf

    Max. Feeding Power

    110kn

    24729lbf

    Foot Clamp

    Clamping Diameter

    55.5-117.5mm

    2.2-4.6inch

    Main Hoister Lifting Force(Single Rope)

    120kn

    26976lbf

    Wire Hoister Lifting Force

    15kn

    3372lbf

    Mast

    Drilling Angle

    45°-90°

    45°-90°

    Feeding Stroke

    3200mm

    126inch

    Slippage Stroke

    1100mm

    43inch

    Other

    Weight

    9600kg

    21164lb

    Transport Way

    Crawler

    Crawler
