    2200mm 52m Crrc Tr220d Rotary Oil Rig High Drill Speed

    Ask Lasest Price
    Brand Name : CRRC
    Model Number : TR220D
    Certification : ISO9001:2015
    Price : 156350.00USD (FOB Tianjin Seaport price)
    Payment Terms : L/C, T/T
    Supply Ability : 30 sets per month
    Delivery Time : ON STOCK
    • Product Details
    • Company Profile

    2200mm 52m Crrc Tr220d Rotary Oil Rig High Drill Speed

    Used 2200mm 52m CRRC TR220D Rotary Drilling Rig for Sale


    There is a used CRRC TR220D rotary drilling rig for sale, with working hours of 8767.1 hours, with 4x440x14m interlocking kelly bar, original CAT 330DL chassis, C-9 engine, power of 261kw, complete accessories and good performance.

    The rotary drilling rig can meet a variety of geological construction requirements, such as soil layer, sandy soil, cohesive soil, silty soil, Gobi geology containing pebbles, weathered stone, house foundation, expressway foundation reinforcement, railway, bridge, foundation reinforcement, wind barrier pile and other foundation works.


    Conditions of the TR220D rotary drilling rig:


    ProductBrandModelYOMMax dia.of piles and depthWorking hours(h)Kelly BarFOB Tianjin Seaport price( USD)Condition

    Rotary Drilling Rig
    Base: CAT330DL

    Engine: C9 261 kw

    CRRCTR220D20142200mm
    52 m
    8767.14x440x14m Interlocking kelly bar156,350.00Nice and refurbished


    Technical Parameters:


     Euro StandardsU.S. Standards
    Max drilling depth65m217 ft
    Max hole diameter2000mm79in
    Engine modelCAT C-9CAT C-9
    Rated power213KW286HP
    Max torque220kN.m162206lb-ft
    Rotating speed6~27rpm6~27rpm
    Max crowd force of cylinder180kN40464lbf
    Max extraction force of cylinder200kN44960lbf
    Max stroke of crowd cylinder5300mm209in
    Max pulling force of main winch200kN44960lbf
    Max pulling speed of main winch78m/min256ft/min
    Wire line of main winchΦ28mmΦ1.1in
    Max pulling force of auxiliary winch110kN24728lbf
    UndercarriageCAT 336DCAT 336D
    Track shoe width800mm32in
    width of crawler3000-4300mm118-170 in
    Whole machine weight65T65T

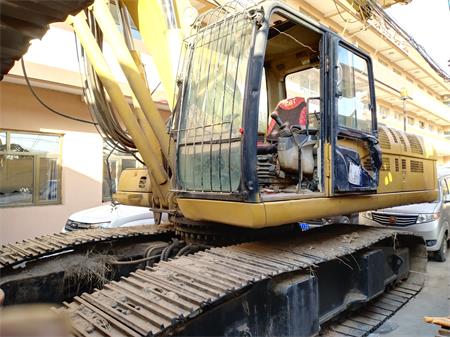

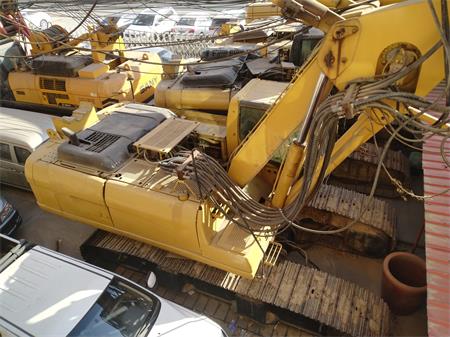

    Photos of TR220D rotary drilling rig:





    Please contact Nancy Fan at any time if you are interested on it.
    WhatsApp/WeChat: 0086 13466631560
    Email: Marketing010@sinovogroup.com
