    Used Sany brand SR220 Rotary Drilling Rigs With C9 Engine

    Ask Lasest Price
    Brand Name : SANY
    Model Number : SR220
    Certification : ISO9001:2015
    Price : USD100,000
    Payment Terms : L/C, T/T
    Supply Ability : 30 sets per month
    Delivery Time : ON STOCK
    • Product Details
    • Company Profile

    Used Sany brand SR220 Rotary Drilling Rigs With C9 Engine

    Used SANY SR220 Rotary Drilling Rig 2300mm 66m


    At present, there is a used SANY SR220C rotary drilling rig for sale, with original Cat chassis and C-9 engine. Its apparent working hours are 8870.9h, the maximum diameter and depth are 2000mm and 54m respectively, and 4x445x14 kelly bar is provided, the rotary drilling rig equipment is in good condition. If you are interested, please feel free to contact us. Sinovogroup has professional personnel to check the geological report and provide you with high-quality construction scheme.


    Technical Parameters:

    NameRotary Drilling Rig
    BrandSany
    Max. drilling diameter2300mm
    Max. drilling depth66m
    EngineEngine power261kw
    Engine modelC9
    Rated engine speed1800r/min
    Weight of the whole machine32767kg
    Power headMaximum torque220kN.m
    Maximum speed土 7-26 r/min
    CylinderMaximum pressure180kN
    Maximum lifting force240kN
    Maximum stroke5160m
    Main winchMaximum lifting force240kN
    Maximum winch speed70m/min
    Diameter of main winch wire rope28mm
    Auxiliary WinchMaximum lifting force110kN
    Maximum winch speed70m/min
    Diameter of auxiliary winch wire rope20mm
    Kelly Bar4x445x14.5m Interlocking Kelly bar
    Drill mast roll angle
    Forward inclination angle of drilling mast
    Pilot pump pressure4Mpa
    Working pressure of hydraulic system34.3 Mpa
    Maximum traction510kN
    Track length5911mm
    DimensionTransportation status15144×3000×3400mm
    Working condition4300×21045mm
    ConditionGood



    Performance characteristics of SANY SR220C rotary drilling rig:

    1. SANY SR220 is a classic model
    SANY SR220 rotary drilling rig is a hole forming construction equipment for cast-in-place piles in moderately and strongly weathered geology such as clay layer, pebble layer and mudstone layer, which is oriented to small and medium-sized industrial and civil construction, municipal and railway pile foundation projects.
    2. High efficiency
    250KW engine, among the mainstream models of the same level, can provide stronger power for the whole machine and improve the construction efficiency.
    3. SANY SR220 rotary drill has large torque and fast drilling speed.
    4. The main winch of SANY SR220 rotary drilling rig has large lifting force and fast speed, and its efficiency is higher under the condition of soil construction.
    5. Product reliability of SANY SR220 rotary drilling rig
    The core parts are jointly designed with international well-known manufacturers and customized for SANY rotary drilling rig to ensure high matching; Adopt advanced R & D means and advanced finite element analysis software to carry out static analysis, dynamic analysis, fatigue analysis and test on the product, so as to optimize the product structure while meeting the design requirements.
    6. SANY SR220 rotary drilling rig fully automatic production line and robot welding, with stable product quality;
    7. NDT for key parts of Sany sr220 rotary drilling rig, with guaranteed quality;
    8. SANY SR220 rotary drilling rig is more intelligent and safer
    Higher intelligent level, more safety protection, convenient construction operation, maintenance, troubleshooting and customer monitoring management.

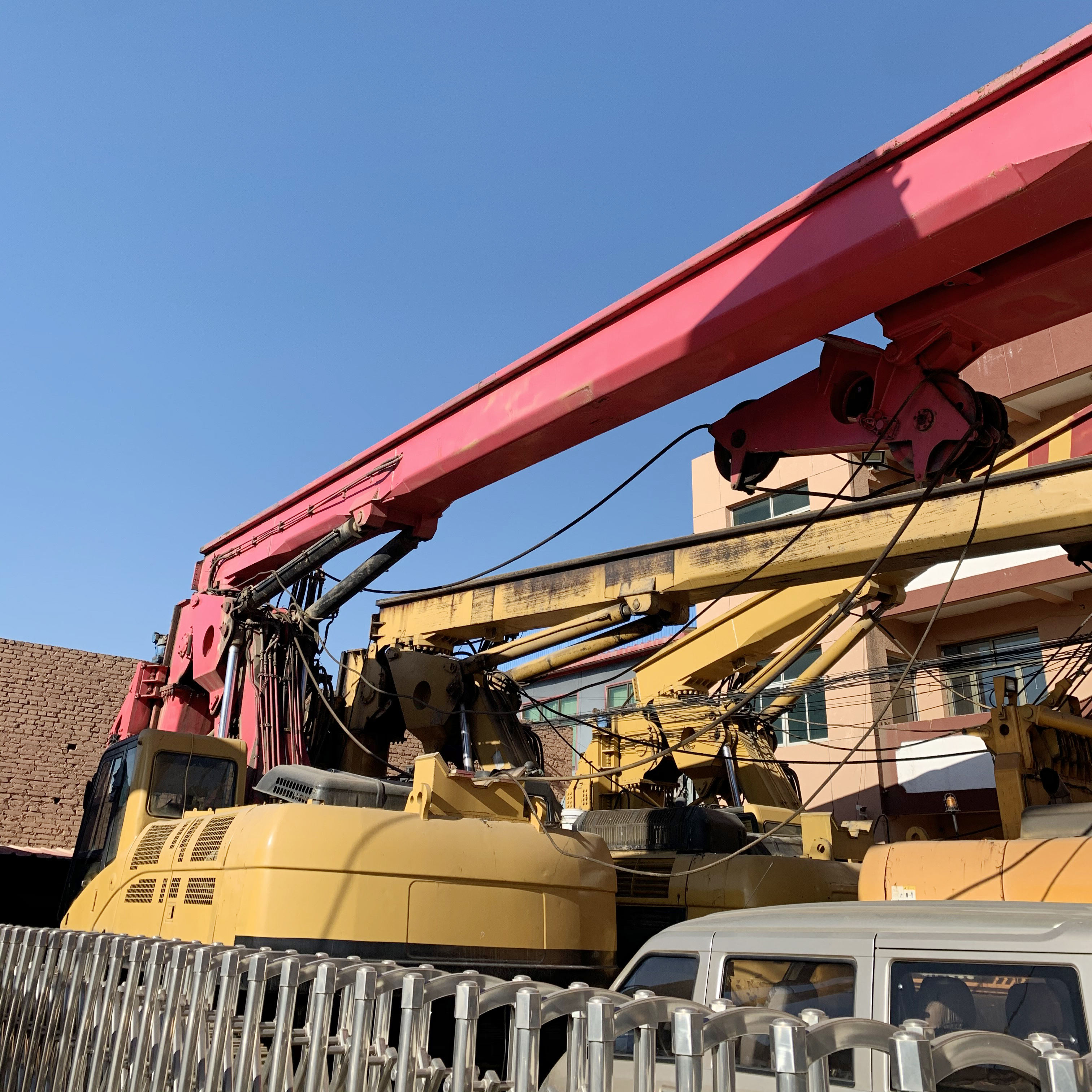

    Photos of TR220D rotary drilling rig:



    Please contact Nancy Fan at any time if you are interested on it.
