    High Quality Low Fuel Consumption Rock Auger Hydraulic piling Machine TR300D Doosan or CAT chassis

    Ask Lasest Price
    Brand Name : SINOVO
    Model Number : TR300D
    Certification : CE/GOST/IS9001
    Price : Negotiation
    Supply Ability : 30 unit per month
    Delivery Time : 7-10 work days
    • Product Details
    • Company Profile

    High Quality Low Fuel Consumption Rock Auger Hydraulic piling Machine TR300D Doosan or CAT chassis


    TR300D Concrete Equipment Rotary Drilling Rig for Bore Pile Drilling With Good Price


    The TR300D rotary drilling righas an operating weight of approx 97 ton. It is specially designed to suit the following applications:
    a. Rotary drilling;
    b. Drilling cased boreholes(installation of casing by rotary drive);
    c. Drilling with telescopic friction or interlocking kelly bar-standard Supply;
    d. Drilling cased bore piles(casing driven by rotary head or optionally by casing oscillation);
    e. CFA Piles by means of continue auger;
    f. Either crowd winch system or hydraulic crowd cylinder system;
    g. Displacement piles;
    h. Soil-mixing.


    TR300D rotary drilling rig ismainly used in the construction oflarge bridges, elevated railway,larger aperture and deep pileconstruction, and this machine can match with various drilling tools for hole operation, such as auger or bucket, core barrel, cleaning bucket etc.


    TR300D Main Technical Specification:


    TR300D Rotary drilling rig

    Engine

    Model


    SCANIA/CAT

    Rated power

    kw

    294

    Rated speed

    r/min

    2200

    Rotary head

    Max.output torque

    kN´m

    318

    Drilling speed

    r/min

    5-25

    Max. drilling diameter

    mm

    2500

    Max. drilling depth

    m

    56/84

    Crowd cylinder system

    Max. crowd force

    Kn

    248

    Max. extraction force

    Kn

    248

    Max. stroke

    mm

    6000

    Main winch

    Max. pull force

    Kn

    300

    Max. pull speed

    m/min

    69

    Wire rope diameter

    mm

    36

    Auxiliary winch

    Max. pull force

    Kn

    100

    Max. pull speed

    m/min

    65

    Wire rope diameter

    mm

    20

    Mast inclination Side/ forwards/ backwards

    °

    ±3/3.5/90

    Interlocking Kelly bar


    ɸ508*4*14.5m

    Friction Kelly bar (optional)


    ɸ508*6*16.5m


    Traction

    Kn

    720

    Tracks width

    mm

    800

    Caterpillar grounding Length

    mm

    4950

    Working Pressure of Hydraulic System

    Mpa

    32

    Total weight with kelly bar

    kg

    97500

    Dimension

    Working (Lx Wx H)

    mm

    9399x4700x23425

    Transportation (Lx Wx H)

    mm

    17870x3870x3400


    Feature and advantages of TR300D rotary drilling rig:


    a. A classic model that dominates the market, with stable performance and reliable quality.

    b. Strong construction capacity due to rotary drive with large torque.

    c. High construction efficiency due to big flow main pump and multi-gear rotary drive.

    d. Strong ability due to the front main winch, the center of gravity moving forward more effective push crowd force.

    e. 22 items self auto-check , safety and performance monitoring.

    f. New generation cab with better vision, more comfortable operation, new electrical control panel. 360 degree full view monitoring.

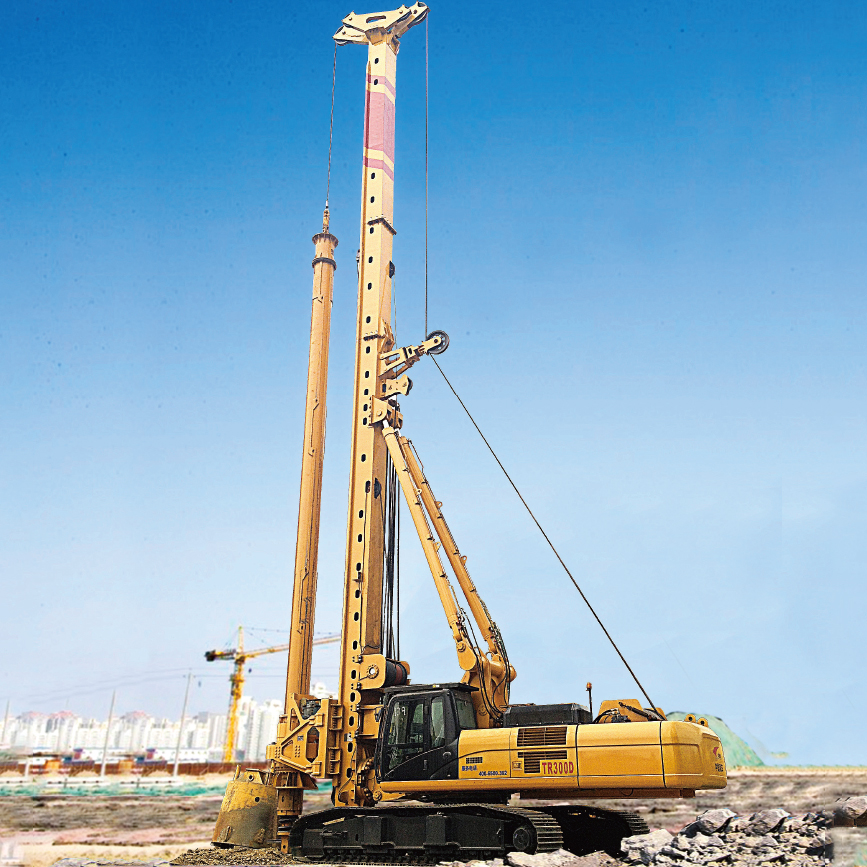

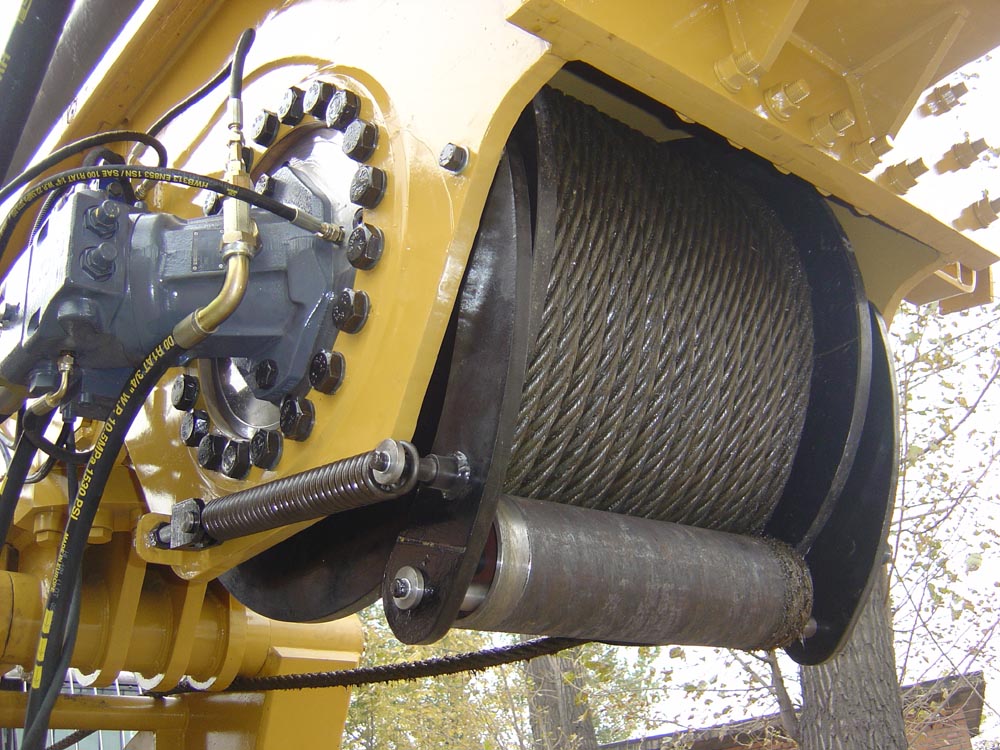

    Detailed Images:

    Quality High Quality Low Fuel Consumption Rock Auger Hydraulic piling Machine TR300D Doosan or CAT chassis for sale
