    TR360D Rotary Drilling Rigs Soilmec Hydraulic Piling Rig Machine Dia 2500mm Easy Maintenance

    Ask Lasest Price
    Brand Name : SINOVO
    Model Number : TR360D
    Certification : CE/GOST/IS9001
    Price : Negotiation
    Supply Ability : 30 set per month
    Delivery Time : 7-10 work days
    • Product Details
    • Company Profile

    TR360D Rotary Drilling Rigs Soilmec Hydraulic Piling Rig Machine Dia 2500mm Easy Maintenance


    TR360D Hydraulic Rotary Drilling Rig For Foundation Piling Boring Machine With 2500mm Drilling Diameter


    The TR360D rotary drilling rig is suited for rotary drilling and drilling cased boreholes( installation of casing by rotarydrive ) . TR360D rotary drilling rig is mainly used in the construction of large bridges, elevated railway. larger aperture and deep pile construction, and this machine can match with various of drilling tools for hole operation, such as Auger or Bucket, core barrel, cleaning buckets, etc.


    TR360D Main Technical Specification:


    TR360D Rotary drilling rig

    Engine

    Model


    SCANIA/CAT

    Rated power

    kw

    331

    Rated speed

    r/min

    2200

    Rotary head

    Max. output torque

    kN´m

    360

    Drilling speed

    r/min

    5-23

    Max. drilling diameter

    mm

    2500

    Max. drilling depth

    m

    66/100

    Crowd cylinder system

    Max. crowd force

    Kn

    300

    Max. extraction force

    Kn

    300

    Max. stroke

    mm

    6000

    Main winch

    Max. pull force

    Kn

    360

    Max. pull speed

    m/min

    63

    Wire rope diameter

    mm

    36

    Auxiliary winch

    Max. pull force

    Kn

    100

    Max. pull speed

    m/min

    65

    Wire rope diameter

    mm

    20

    Mast inclination Side/ forwards/ backwards

    °

    ±3/3.5/90

    Interlocking Kelly bar


    ɸ530*4*18m

    Friction Kelly bar (optional)


    ɸ530*6*18m


    Traction

    Kn

    720

    Tracks width

    mm

    800

    Caterpillar grounding Length

    mm

    5160

    Working Pressure of Hydraulic System

    Mpa

    32

    Total weight with kelly bar

    kg

    113000

    Dimension

    Working (Lx W x H)

    mm

    9490x4800x26290

    Transportation (Lx W x H)

    mm

    17872x3600x3400


    Feature and advantages of TR360D rotary drilling rig:


    1. TR360D rotary drilling rig adopts Big - Triangle support structure to guarantee the working stability for drilling rig.
    2. Driven by three hydraulic motors with the configured reducers, the rotary head failure rate will be declined greatly by the single reduction gear unit in the reducer. In that case, the structure of rotary head is compact with powerful output capability.
    3. In order to improve the service life of the rope, we make a large radius drum which is enough to contain the wire rope in one layer. Commonly, the overloading, friction and extrusion are minimized; the service life of wire rope is improved greatly.
    4. TR360D rotary drilling rig applies the winch crowd system with 14m super long stroke, and provide stronger push-down force. It allows the CFA drilling and realizes the multi-function of the machine. It helps to go through the hard rock by continuous down-pulling of Kelly bar.
    5. Electronic control system integrates high-standard engineering machinery controller, monitor intelligent sensor and other electronics, with precise measurement and monitoring. Realize the adjustment of the perpendicularity of the mast accurately and quickly.
    6. Perfect stability of the whole machine. The main winch is assembled on the rear of turret. The weight of the main winch acts the role of counterweight large breadth of chassis (4400x5000) the big section box structure of the mast with better rigidity of mast ensures the perfect stability of the whole machine.
    7. The controlling system records the rotating position of the upper body with the automatic positioning device in order to help the operator remember the correct position of the pile point automatically.
    8. TR360D rotary drilling rig adopts full automatic turning mast with centralized lubrication system improves turning piece using life, reducing maintenance cost.

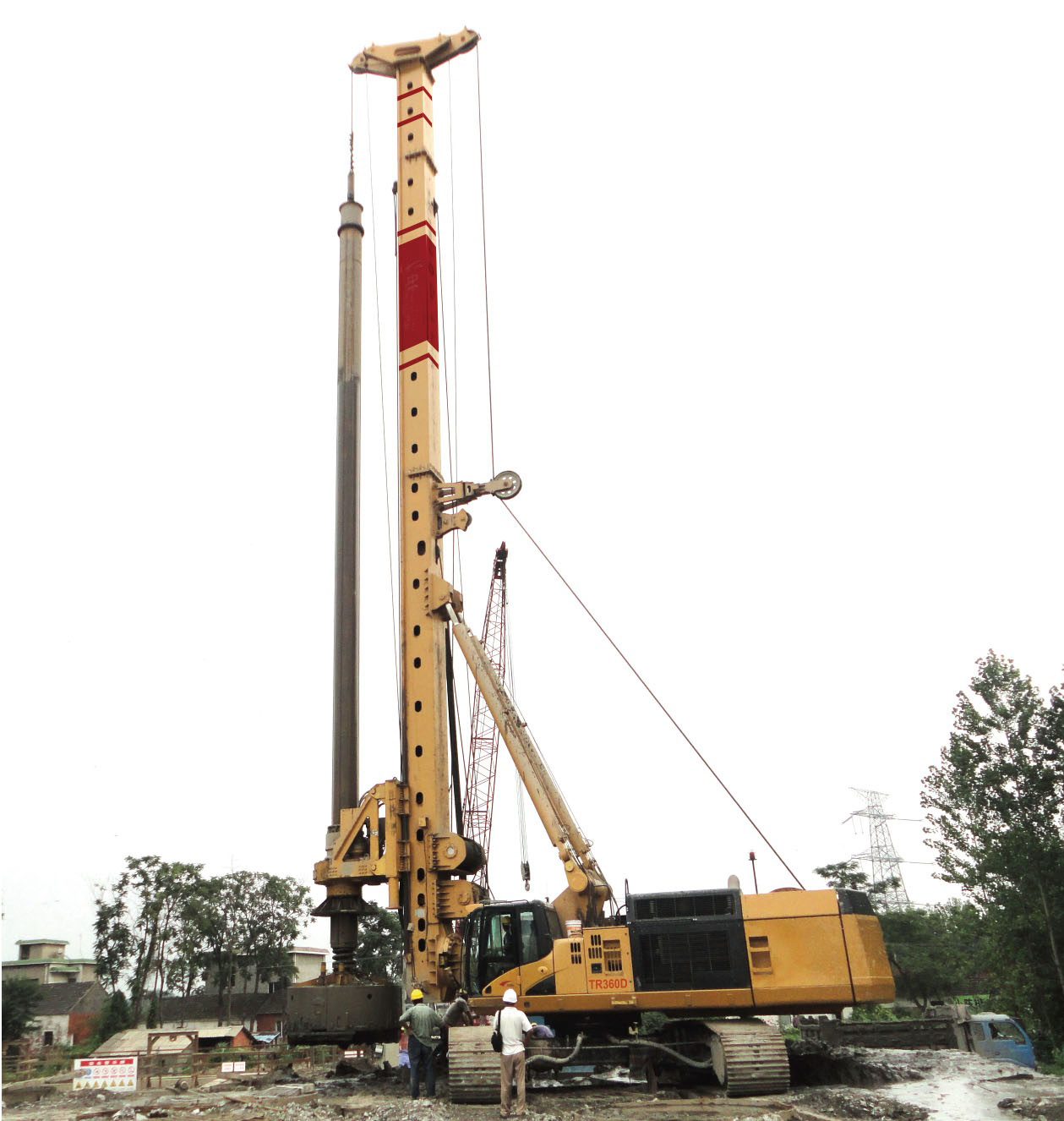

    Detailed Images:

    Quality TR360D Rotary Drilling Rigs Soilmec Hydraulic Piling Rig Machine Dia 2500mm Easy Maintenance for sale
