    Top Grade Customizable TR600 158m Depth Rotary Drilling Rigs For Civil Or Bridge Engineering

    Ask Lasest Price
    Brand Name : SINOVO
    Model Number : TR600D
    Certification : CE/GOST/IS9001
    Price : Negotiation
    Supply Ability : 30 set per month
    Delivery Time : 7-10 work days
    • Product Details
    • Company Profile

    Top Grade Customizable TR600 158m Depth Rotary Drilling Rigs For Civil Or Bridge Engineering

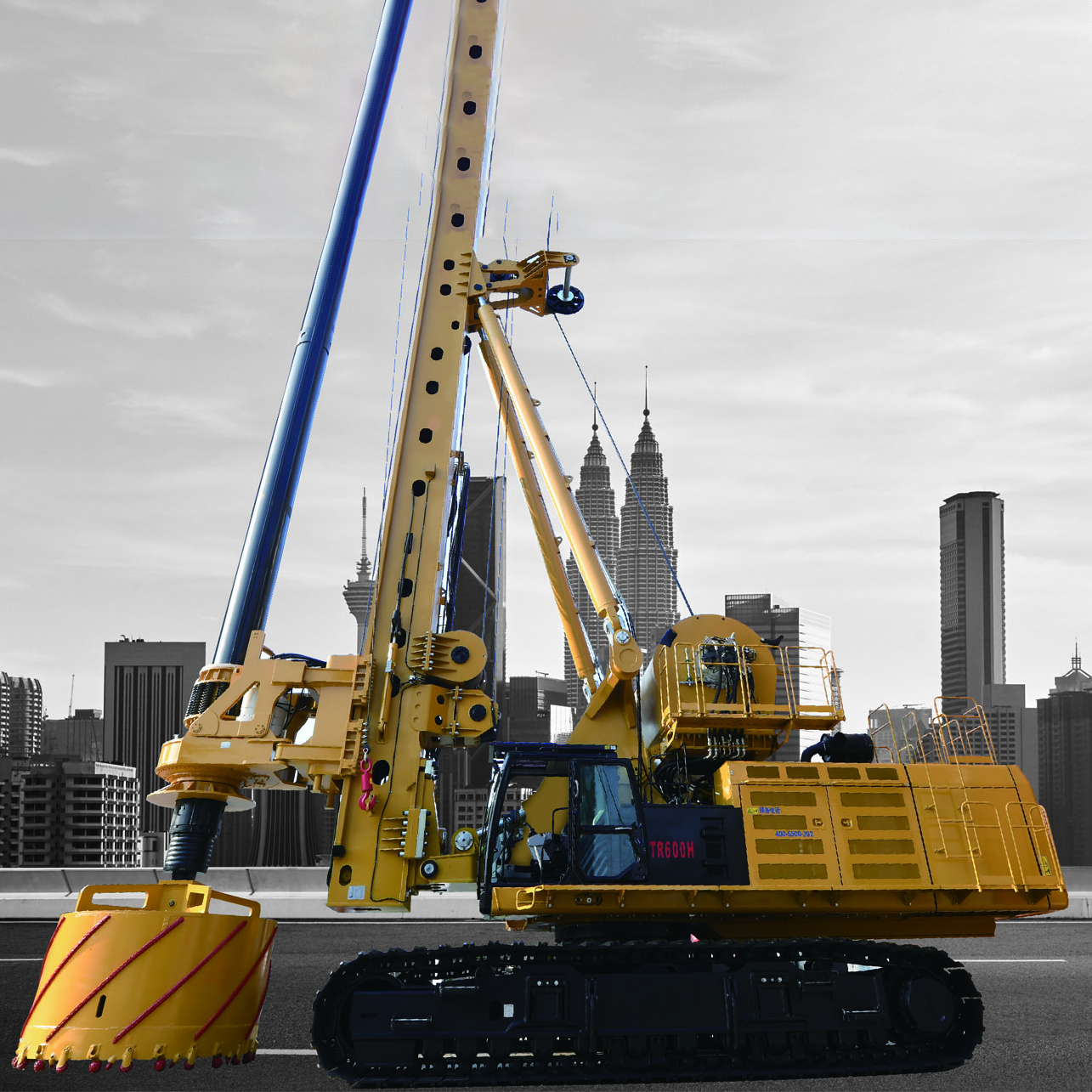

    TR600 158m Depth Hydraulic Crawler Rotary Pile Drilling Rigs For Civil Or Bridge Engineering


    TR600 rotary drilling rig is mainly used in the super large and deep construction of civil and bridge engineering. It obtained a number of national invention patentsand utility model patents. Key components use CAT and Rexroth products. The advanced intelligent electronic control system makes the hydraulic control moresensitive, accurate and fast. The advanced intelligent electronic control system makes the hydraulic control more sensitive, accurate and fast. The machine operationis safe and reliable, and a nice human-machine interface.


    TR600D Main Technical Specification:


    TR600D Rotary drilling rig

    Engine

    Model



    CAT

    Rated power

    kw

    406

    Rated speed

    r/min

    2200

    Rotary head

    Max.output torque

    kN´m

    600

    Drilling speed

    r/min

    6-18

    Max. drilling diameter

    mm

    4500

    Max. drilling depth

    m

    158

    Crowd cylinder system

    Max. crowd force

    Kn

    500

    Max. extraction force

    Kn

    500

    Max. stroke

    mm

    13000

    Main winch

    Max. pull force

    Kn

    700

    Max. pull speed

    m/min

    38

    Wire rope diameter

    mm

    50

    Auxiliary winch

    Max. pull force

    Kn

    120

    Max. pull speed

    m/min

    65

    Wire rope diameter

    mm

    20

    Mast inclination Side/ forwards/ backwards

    °

    ±5/8/90

    Interlocking Kelly bar



    ɸ630*4*30m

    Friction Kelly bar (optional)



    ɸ630*6*28.5m



    Traction

    Kn

    1025

    Tracks width

    mm

    1000

    Caterpillar grounding Length

    mm

    8200

    Working Pressure of Hydraulic System

    Mpa

    35

    Total weight with kelly bar

    kg

    230000

    Dimension

    Working (Lx Wx H)

    mm

    9490x6300x37664

    Transportation (Lx Wx H)

    mm

    10342x3800x3700


    Feature and advantages of TR600D rotary drilling rig:


    1. TR600D rotary drilling rig uses retractable caterpillar chassis. CAT counter weight is moved to the backwards and variable counter weight s added. It has nice appearance, comfortable to operate energy saving, environmental protection, reliable and durable Germany Rexroth motor and zollern reducer go well with each other.
    2. The core of hydraulic system is the load feedback technology which enables the low to be allocated to each working device of the system according to needs to realize best matching under different working conditions. it saves engine power greatly and reduces energy consumption.
    3. Adopt middle mounted main winch, crowd winch, box section steel plate welded lower mast, truss type upper mast, truss type cathead, variable counter weight( variable number of counter weight blocks) structure and axis turntable structure to reduce the weight of the machine and ensure overall reliability and structural safety.
    4. The vehicle mounted distributed electrical control system integrates electrical components such as foreign vehicle mounted controllers, displays and sensors. It can realize many functions of engine starting and stopping monitoring, fault monitoring, drilling depth monitoring vertical monitoring, electromagnetic reversing protection and drilling protection.
    5. The key structure is made of steel plate with fine gain of high strength up to700-900mpa with high strength, good rigidity and light weight And carry on the optimized design combined with the result from finite element analysis, which makes the structure more reasonable and design more reliable. The use of advanced welding technology makes it possible for super large tonnage rig to be lightweight.
    6. The working devices are joint researched and designed by first-class brand manufacturers which ensures the best construction performance and construction efficiency.
    7. Drilling tools can be selected according to different working conditions so as to ensure smooth construction of the rotary drilling rig under different working conditions.

    Detailed Images:
