    Crawler Type Full Hydraulic Core Drilling Rig SD1000

    Ask Lasest Price
    Brand Name : SINOVO
    Model Number : SD1000
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    • Product Details
    • Company Profile

    Crawler Type Full Hydraulic Core Drilling Rig SD1000

    Product details:

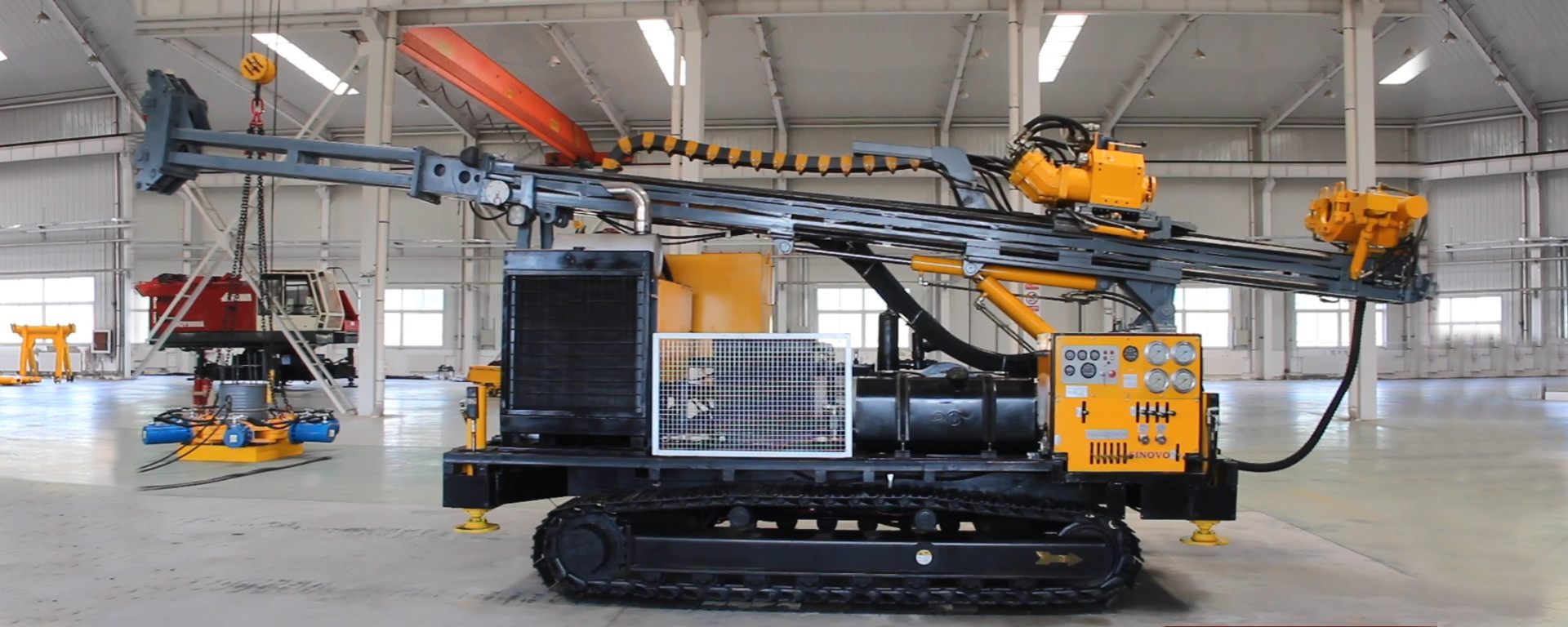

    SD1000 crawler type full hydraulic core drilling rig is a kind of full hydraulic power head drilling equipment installed on the crawler chassis.


    1. Scope of use


    SD1000 crawler type full hydraulic core drilling rig is a full hydraulic pressure top drive drilling machine. The drilling machine is mainly used for diamond drilling and cemented carbide drilling, which can meet the requirements of core drilling technology construction of diamond rope.


    2. Main features


    1). The power head is designed by French technology. The structure is double motor and mechanical shift. It has a wide range of speed change and a large torque at the low speed end. It can meet the requirements of different drilling methods.
    2). The power head has the advantages of high transmission accuracy, stable operation and deep hole drilling.
    3). The feeding and lifting system adopts the cylinder chain multiplication mechanism, which has a long feeding process and high operation efficiency.
    4). The drilling machine has the advantages of fast feeding speed, saving a lot of auxiliary time and improving drilling efficiency.
    5). The guide rail of the main tower is of V-shaped structure. The power head is connected with the main tower with strong rigidity and stable rotation at high speed.
    6). The power head adopts the way of automatic opening.
    7). The drilling rig is equipped with a clamp and a shackle, which is convenient to dismantle the drill pipe and reduces the labor intensity.
    8). The hydraulic system of drilling rig is designed according to French technology. The rotary motor and main pump are plunger type, so the system is safe and reliable

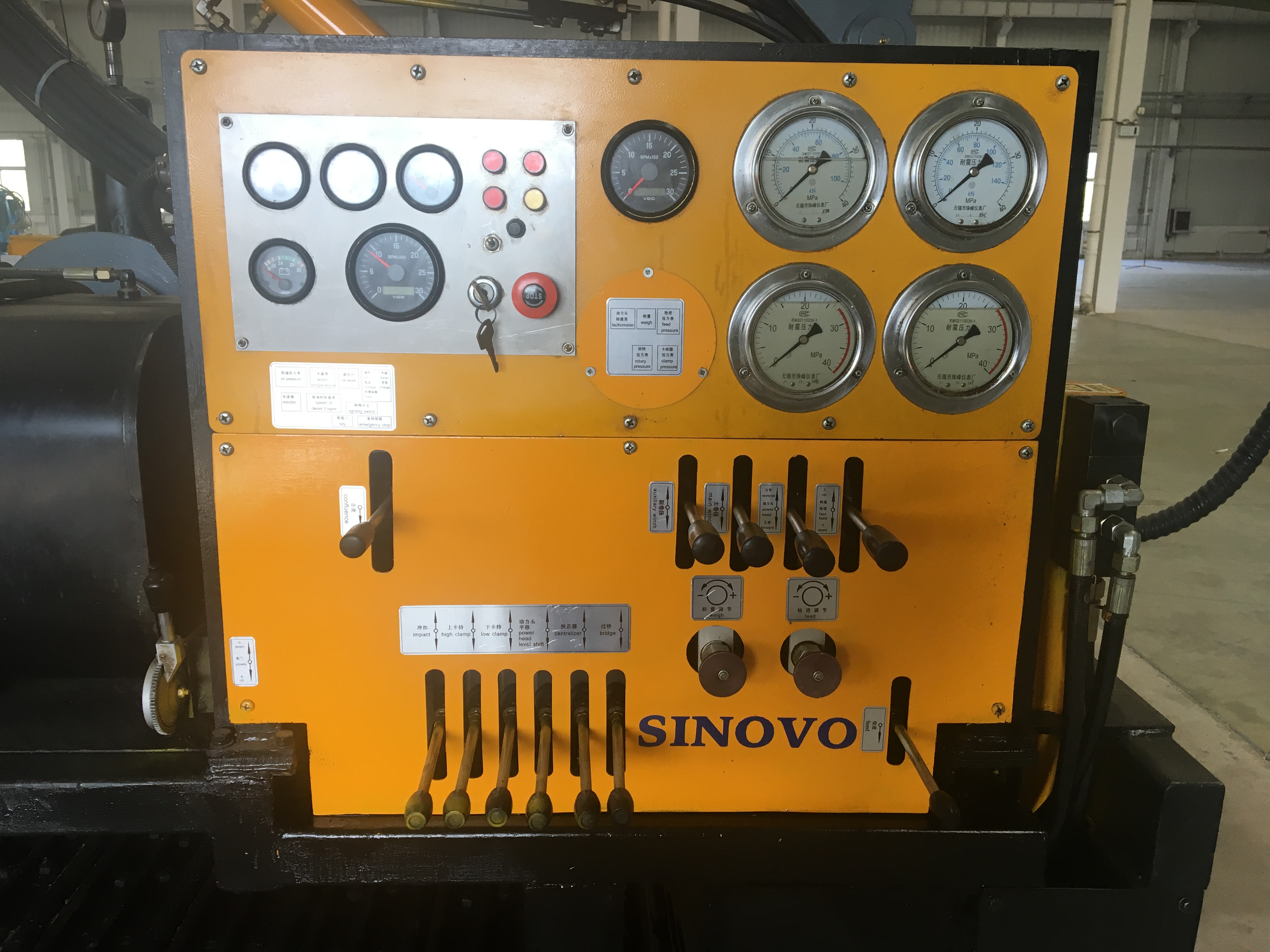

    9). The mud pump is hydraulically controlled, and various operations of the drilling machine are centralized, which is convenient for handling various downhole accidents.


    Crawler Type Full Hydraulic Core Drilling Rig SD1000


    SD1000 Technical Specifications
    ModelCrawler type hydraulic driving head rig
    Fundamental ParametersDrilling capacityФ56mm(BQ)1000m
    Ф71mm(NQ)600m
    Ф89mm(HQ)400m
    Ф114mm(PQ)200m
    Drilling angle60°-90°
    Overall dimensionMovement6600*2380*3360mm
    Working5760*2400*9000mm
    Total weight11000kg
    Rotation unitRotation speed145,203,290,407,470,658,940rpm
    Max.torque3070Nm
    Hydraulic driving head feeding distance4200mm
    Hydraulic driving head feeding systemTypeSingle hydraulic cylinder driving the chain
    Lifting force70KN
    Feeding force50KN
    Lifting speed0-4m/min
    Rapid lifting speed45m/min
    Feeding speed0-6m/min
    Rapid feeding speed64m/min
    Mast displacement systemDistance1000mm
    Lifting force80KN
    Feeding force54KN
    Clamp machine systemRang50-220mm
    Force150KN
    Unscrews machine systemTorque12.5KN.m
    Main winchLifting capacity(single wire)50KN
    Lifting speed(single wire)38m/min
    Rope diameter16mm
    Rope length40m
    Secondary winch(adopt planetary hoisting provides impacting operating)Lifting capacity(single wire)10KN
    Lifting speed(single wire)205m/min
    Rope diameter5mm
    Rope length600m
    Mud pump (Three cylinder reciprocating piston pump)TypeBW-250
    Volume250,145,100,69L/min
    Pressure2.5,4.5,6.0,9.0MPa
    Power Unit (Diesel engine)Model6BTA5.9-C180
    Power/speed132KW/2200rpm
