    132kw Well Drilling Equipment

    Ask Lasest Price
    Brand Name : Sinovo
    Model Number : SNR200CS
    Certification : CE/ISO
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    • Product Details
    • Company Profile

    132kw Well Drilling Equipment

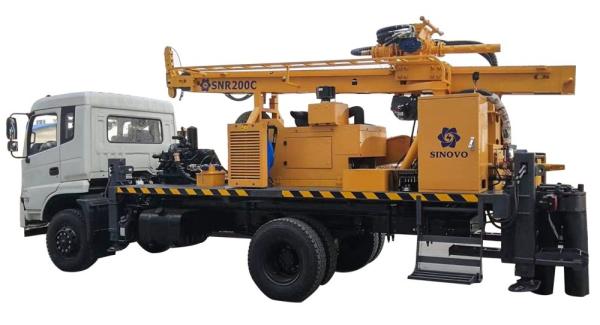

    Full Hydraulic Truck Type Well Drilling Equipment 132kw Diesel Engine Power


    SNR200CS full hydraulic double rotary head water well drilling rig, It can be drilled with DTH hammer, and can also be drilled with mud pump , casing rotator to meet different geological conditions. It is suitable for large diameter water wells, pile holes, mining rescue and other projects.


    The rig can provide three different types of drilling rig, such as truck, trailer type and crawler type, according to the needs of the users.


    The drilling rig is powered by two diesel engines. The upper rotary power head is made up of high-speed motor and gearbox, and the bottom rotary head is made up of low speed, high torque hydraulic motor and gearbox. The propulsion system is fed by the oil cylinder. Rotating and feeding system are controlled by hydraulic pilot control which can achieve stepless speed regulation. Breaking out and in drill rod, leveling the whole machine, winch and other auxiliary actions are controlled by hydraulic system. The structure of rig is designed to reasonable, which is easy to operate and maintenance.



    Technical Parameters


    Drill modelSNR200CS
    Diesel engineModel Cummins6BTA5.9-C180
    KWPower132
    rpmRotate speed2200
    Rotary headrpmRotate speed0-100
    N.mMax. torque18000
    KNMax. pullback force150
    KNMax. feed force150
    MastmHeight7.2
    Angle0︒-90︒
    mStroke4.5
    RodmmDiameter89/114
    RC (reverse circulation) drillingmmMax. diameter1000
    mDepth200
    Rock with water and air composite DTHmmMax. diameter600
    mDepth100
    m³/KgAir consumption31/24
    New DTHmmMax. diameter300
    mDepth300
    m³/KgAir consumption31/24
    Traditional DTHmmMax. diameter300
    mDepth120
    m³/KgAir consumption31/24
    RC pumpModel6,7
    Mud pumpModelBW250/10
    WinchKNLifting force15
    Transport dimensionKgWeight9200
    LxWxH mmOverall dimensions7200x2200x2880

    Optional
    Rig operation by truck or trailer or crawlerMast extensionBreakout cylinderAir compressor
    Centrifugal pumpMud pumpWater pumpFoam pump
    RC pumpScrew pumpDrill pipe boxPipe loader arm
    Opening clampSupport jack extension
