219KW Full Hydraulic Water Well Drilling Machine Max Drilling Depth 600m

Water well drilling rigs are kinds of medium and high efficient full hydraulic multi-functional and rotary table type water well drill rig for drilling up to 1000m, which are used for water well, monitoring wells, engineering of ground-source heat pump air-conditioner, blasting hole, bolting and anchor cable, micro pile ect.. Compactness and solidity are the main characteristics of the rig which is designed to work with several drilling method: reverse circulation by mud and by air, down the hole hammer drilling, conventional circulation.

Multifunctional, medium or highly efficient, water well drilling rig is one of the hydraulic rotary drilling rigs which are capable to drilling concretes buried inside the earth with a depth of 1000 meters. It is applicable in hole blasting, micro piles, and etc. for water well, monitoring well, as well as ground source heat pump drilling project.

Rigs of this series are highly compacted and durable, which allows many drilling methods: reverse circulation by mud and by air, down the hole hammer drilling, conventional circulation. So different drilling demands due to different geological conditions and holes.

The rigs can be customized in crawler, trailer or truck mounted type. Besides, other drilling requirements including mast extensions (folding or telescopic), support leg extensions, various foam and mud piston pumps etc. could also be perfectly met.

We also produce air drilling tools and mud drilling tools, in addition to water well drilling rigs.

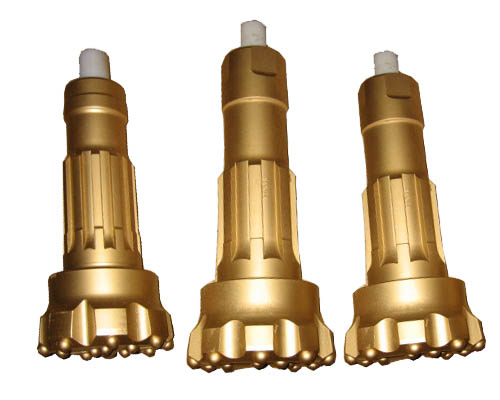

Our air drilling tools include DTH hammers and hammer heads. Air drilling is a technique that uses compressed air instead of water and mud circulation to cool drill bits, remove drill cuttings, and protect well wall. Inexhaustible air and easy preparation of gas-liquid mixture greatly facilitates the use of drilling rigs in dry, cold places and effectively reduces water costs.
Our mud drilling tools include tricone tooth bits, three wing bits, lock adapters, tricone bits, drilling rods, and drilling bits etc. They are carefully manufactured to ensure the stability of drilling rigs.

We are a Chinese water well drilling rig manufacturer. As a result of our commitment to product quality and services, we have been awarded the ISO9001: 2015 certificate, and our products have been CE certified.
If you need more product information, or assistance with your application, please feel free to call us or email us.

Engine power	219Kw
Max. drilling depth	600m
Borehole diameter	Rock200-350mm,soil500-1200mm
Working air pressure	1.05-2.46Mpa
The total gas consumption	16-30 M3/min
Drilling efficiency	10-25 m/h
Length of drill rod	6m
Drill pipe diameter	ϕ108mm
Axial pressure	300KN
Lifting force	300KN
Slow down, slow speed	9.2m/min
Rise fast,fast forward speed	50m/min
Power head torque	22000 N*m
Rotary speed	0-50;0-100 r.p.m
Hydraulic mud pump	600 L/min
Travel speed	2km/h
Grade ability	20°
Weight of main machine	18500Kg
Dimensions	9400X2100X3200mm

Water Well Drilling Rig Accessories

Air Drilling Tools-DTH
