    SNR200C Crawler Mounted Waterwell Drilling Rig Full Hydraulic Drilling Rig To Drilling Water Well

    Ask Lasest Price
    Brand Name : SINOVO
    Model Number : SNR200C
    Certification : CE/GOST/ISO9001
    Price : Negotiation
    Supply Ability : 30 sets per month
    Delivery Time : 7-10 work days
    • Product Details
    • Company Profile

    SNR200C Crawler Mounted Waterwell Drilling Rig Full Hydraulic Drilling Rig To Drilling Water Well

    SNR200C High Efficient Crawler Mounted Multifunctional Water Well Drilling Rig


    Basic Information:


    SNR200C drilling rig is a kind of medium and high efficient full hydraulic multifunctional water well drill rig for drilling up to 240m and is used for water well, monitoring wells, engineering of ground-source heat pump air-conditioner, blasting hole, bolting and anchor cable, micro pile etc. Compactness and solidity are the main characteristics of the rig which is designed to work with several drilling method: reverse circulation by mud and by air, down the hole hammer drilling, conventional circulation. It can meet the drilling demand in different geological conditions and other vertical holes.
    The rig can be either crawler, trailer or truck mounted and it can be personalized according to the various customers’ requirements. The drilling machine is driven by diesel engine, and rotary head is equipped with international brand low-speed and large-torque motor and gear reducer, feeding system is adopted with advanced motor -chain mechanism and adjusted by double speed. Rotating and feeding system are controlled by
    hydraulic pilot control which can achieve step-less speed regulation. Breaking out and in drill rod, leveling the whole machine, winch and other auxiliary actions are controlled by hydraulic system. The structure of rig is designed to reasonable, which is easy to operate and maintenance.


    Features:


    1. The machine is equipped with Cummins engine or electric power as the client’s special request.

    2. Hydraulic rotary head and break in-out clamp device, advanced motor- chain feeding system, and hydraulic winch are reasonable matched.

    3. This rig can be used by two drilling method in set covering layer and stratum soil condition.

    4. The rig can be either crawler, trailer or truck mounted, optional 6*4 or 6*6 heavy truck.

    5. Conveniently equipped with air compressor and DTH hammer, it can be used to drill the hole in rock soil condition by air drilling method.

    6. The rig is adopted with patent technology hydraulic rotating system, mud pump, hydraulic winch, which can be work with circulation drilling method.

    7. Two-speed hydraulic regulation is used in rotating, thrusting, lifting system, which shall make drilling specification more match with well working situation.

    8. Hydraulic system is equipped with separate air-cooled hydraulic oil cooler , also can install water cooler as client's optional in order to ensure hydraulic system work continuously and efficiently under the high temperature weather conditions in different regions.

    9. Four hydraulic support jacks can level rapidly undercarriage to ensure the drilling accuracy. The support jack extension as optional can be easy to make the rig load and unload on truck as Self-loading by itself, which save more transportation cost.


    Technical Parameter:


    Item

    Unit

    SNR200

    SNR200S

    Max drilling depth

    m

    240

    260

    Drilling diameter

    mm

    105-305

    105-305

    Air pressure

    Mpa

    1.25-3.5

    1.25-3.5

    Air consumption

    m3/min

    16-55

    16-55

    Rod length

    m

    3

    3

    Rod diameter

    mm

    89

    89

    Main shaft pressure

    T

    4

    4

    Lifting force

    T

    12

    16

    Fast lifting speed

    m/min

    18

    20

    Fast forwarding speed

    m/min

    30

    40

    Max rotary torque

    N.m

    3700

    4500/2250

    Max rotary speed

    r/min

    70

    85/170

    Big secondary winch lifting force

    T

    Small secondary winch lifting force

    T

    1.5

    1.5

    Jacks stroke

    m

    Low jack

    1.3

    Drilling efficiency

    m/h

    10-35

    10-35

    Moving speed

    Km/h

    2.5

    2.5

    Uphill angle

    °

    21

    21

    Weight of the rig

    T

    8

    7.23

    Dimension

    m

    6.4*2.08*2.8

    4*1.35*2.15

    Working condition

    Unconsolidated formation and Bedrock

    Drilling method

    Top drive hydraulic rotary and pushing, hammer or mud drilling

    Suitable hammer

    Medium and high air pressure series

    Optional accessories

    Mud pump, Gentrifugal pump, Generator, Foam pump


    Optional

    Rig operation by truck or trailer or crawler

    Mast extension

    Breakout cylinder

    Air compressor

    Centrifugal pump

    Mud pump

    Water pump

    Foam pump

    RC pump

    Screw pump

    Drill pipe box

    Pipe loader arm

    Opening clamp

    Support jack extension

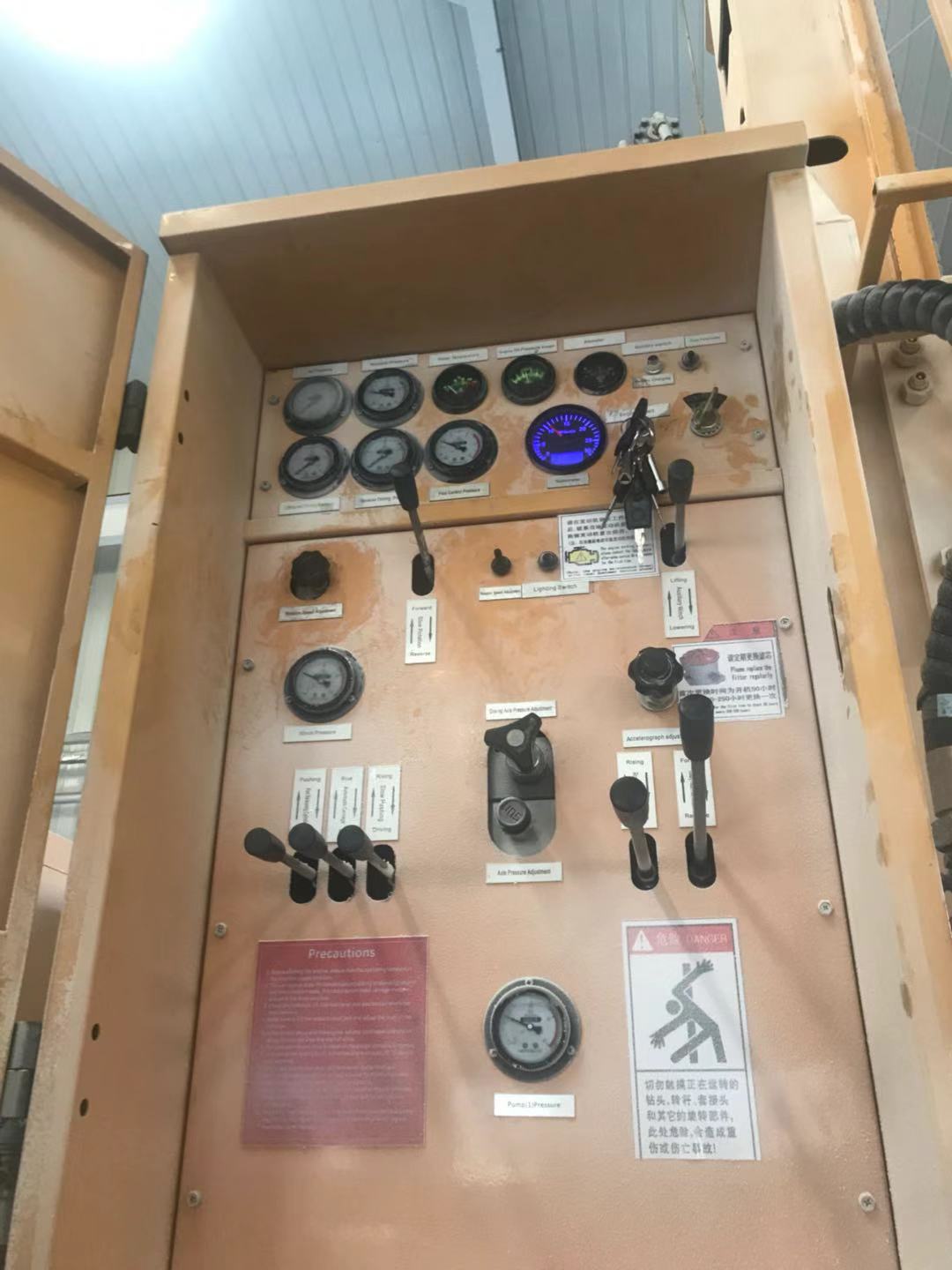

    SNR200C photos:
