    Diameter 400mm SPF400A 160/8h Hydraulic Pile Breaker Break Square Pile Cut Concrete Pile

    Ask Lasest Price
    Brand Name : SINOVO
    Model Number : SPF400A
    Certification : CE/GOST/ISO9001
    Price : Negotiation
    Supply Ability : 30 sets per month
    Delivery Time : 7-10 work days
    • Product Details
    • Company Profile

    Diameter 400mm SPF400A 160/8h Hydraulic Pile Breaker Break Square Pile Cut Concrete Pile

    SPF400A Hydraulic Concrete Breaker Modules Design Pile Breaker Cut 300-400mm Pile

    Basic Information:

    The leading hydraulic pile breaker with five patented technologies and adjustable chain, it is the most efficient equipment to break the foundation plies. Due to the modular design, the pile breaker can be used for breaking different sizes of piles. Equiped with the chains, it can work with different equipments to break piles.


    Feature (Apply to all Pile Breakers):

    1. Environment-friendly: Its full hydraulic drive causes little noises during operation and no influence on the surrounding environments.
    2. Low-cost : The operating system is easy and convenient.Fewer operating workers are required to save cost for labor and machines maintenance during construction.
    3. Multi-function: Module generalization is realized with our SPF400 square pile machine. It can be used for both circular piles and square piles by changing the module combination.
    4. Small volume: It's light for convenient transportation.
    5. Safety: Contact-free operation is enabled and it can be applied for construction on complex land form.
    6. Universal property: It can be driven by diverse power sources and is compatible with excavators or hydraulic system according to the construction sites conditions. It is flexible to connect multiple construction machines with universal and economical performance. The telescopic sling lifting chains meet the requirements of various landforms.
    7. Long service life: It is made of military material by firstclass suppliers with reliable quality, extending its service life.
    8. Convenience: It's small for convenient transportation.Replaceable and changeable module combination makes its applicable for piles with various diameters. The modules can be assembled and disassembled easily and conveniently

    9. Multiple Functions: Module generalization is realized with our SPA5 and SPF400A square pile machine. It can be used for both round pile and square pile by changing the module combination.SPA5 and SPF400A pile breaker are highly modularized. When changing the modular combination, both round pile and square pile could be broken.


    Technical Parameter:

    ModelSPF400-A
    Range of Pile diameter (mm)300-400
    Maximum Drill rod pressure485kN
    Maximum stroke of hydraulic cylinder150mm
    Maximum pressure of hydraulic cylinder31.5MPa
    Maximum flow of single cylinder25L/min
    Cut the number of pile/8h160
    Height for cutting pile each time≦300mm
    Supporting the digging machine Tonnage(excavator)≧7t
    Work status dimensions1600X1600X2000mm
    Total pile breaker weight750kgs



    Construction's Parameters:

    Length of drill rod

    Pile Diameter (mm)

    Remark

    170

    300 - 400

    Standard Configuration

    206

    200 - 300

    Optional Configuration

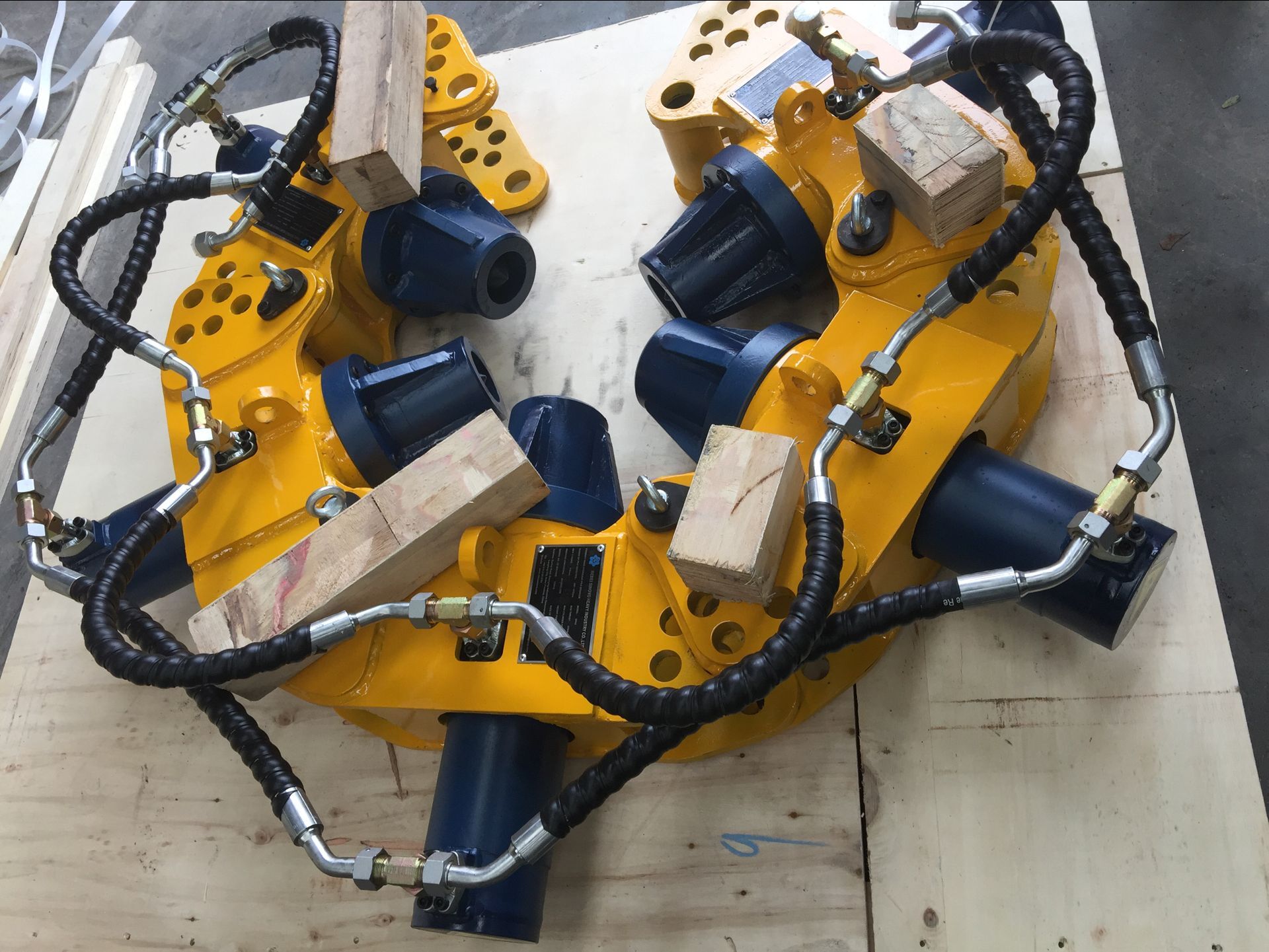

    SPF400A Hydraulic Pile Breaker Reference Photos:



    Quality Diameter 400mm SPF400A 160/8h Hydraulic Pile Breaker Break Square Pile Cut Concrete Pile for sale
