    26m Depth Crawler Cfa Drilling Rig Equipment

    Ask Lasest Price
    Brand Name : SINOVO
    Model Number : TR280W
    Certification : CE/GOST/ISO9001
    Price : Negotiation
    Payment Terms : L/C, D/A
    Supply Ability : 30 set per month
    Delivery Time : 7-10 work days
    • Product Details
    • Company Profile

    26m Depth Crawler Cfa Drilling Rig Equipment

    26m Depth 1200 Dia Crawler CFA Drilling Equipment

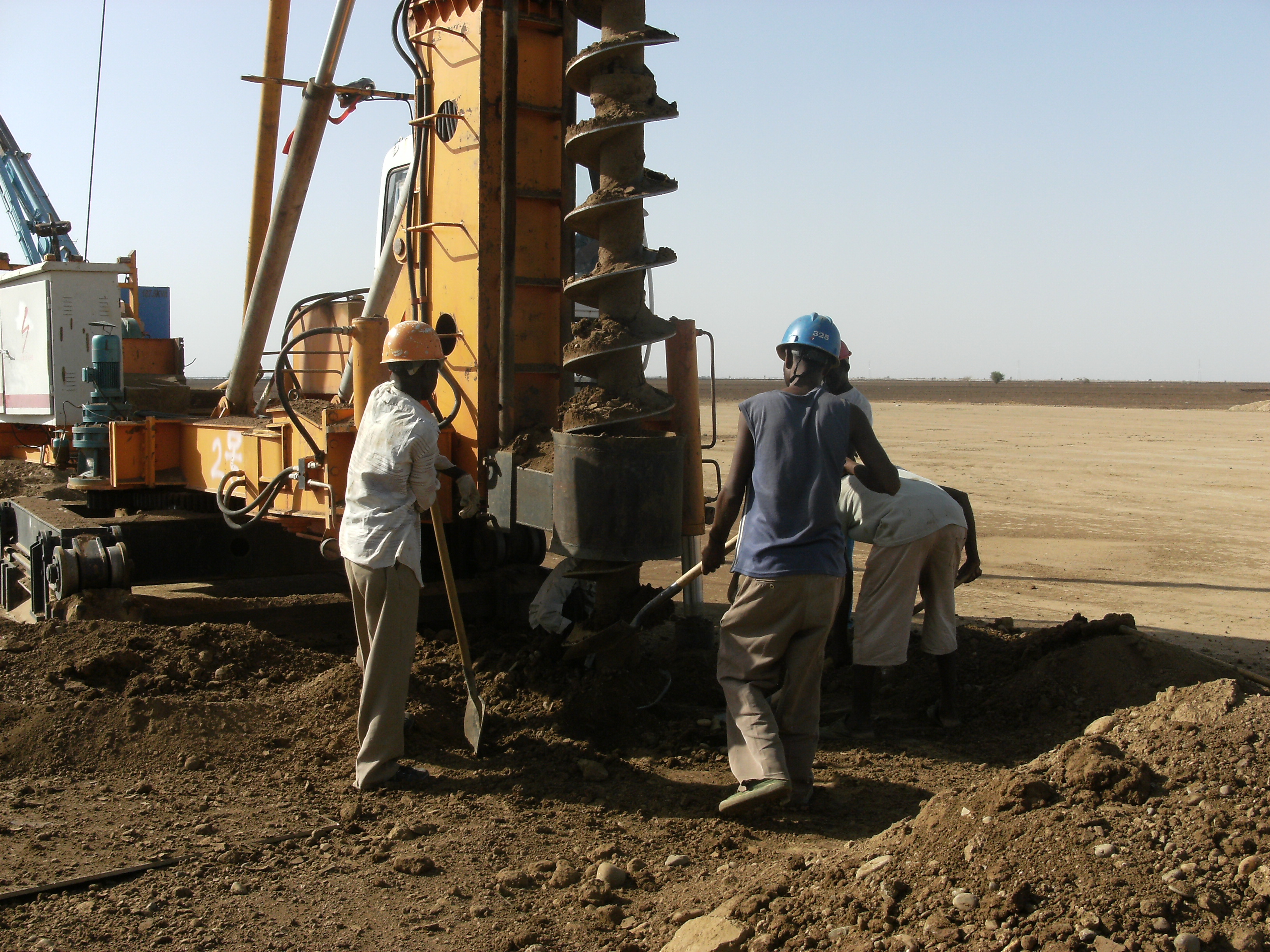

    Our CFA drilling equipment based on continuous flight auger drilling technique is mainly used in construction to create concrete piles.The maximum diameter of piling reaches 1.2 m and max. depth achieves 30 m, helping overcome problems formerly connected to project and execution of pilings.


    Features:


    1. imported genuine cummins turbo-supercharged engine, high power, reliable performance and unique speed droop design, saving more fuel.

    2. special telescopic rotary excavating undercarriage, equipped with double-box type derricking machanism, easy for transportation and adjustment, enabling excellent operation stability and reliability.

    3. imported Kawasaki hydraulic components, reasonable power system matching and high construction efficiency.

    4. With the single rope main winch, it efficiently solves the problemof wire rope wear, and improves the service life of wire rope.
    a detectiondevice of drilling depth on the main winch, and single rope makes deepinspection more accuracy.
    5. The design of whole machine meets the requirements of the CEdirective, that guarantees safety, and construction safer.
    6. Configure centralized lubrication system, which makes maintenancemore convenient.
    7. Selection of a variety of specifications for -bar, meeting the efficient construction ofdifferent strata.


    Technical parameters:


     Euro StandardsU.S. Standards
    Max drilling depth26m85 ft
    Max drilling diameter1200mm47in
    Engine modelCAT C-9CAT C-9
    Rated power261KW350HP
    Max torque for CFA120kN.m88476lb-ft
    Rotating speed6~23rpm6~23rpm
    Max crowd force of winch280kN62944lbf
    Max extraction force of winch280kN62944lbf
    Stroke14500mm571in
    Max pulling force of main winch (the first layer)240kN53952lbf
    Max pulling speed of main winch63m/min207ft/min
    Wire line of main winchΦ30mmΦ1.2in
    UndercarriageCAT 336DCAT 336D
    Track shoe width800mm32in
    width of crawler3000-4300mm118-170in
    Whole machine weight78T78T

    Packaging & Delivery
    Packaging Details
    Nude Package
    Port
    Tianjin
    Lead Time :
    Quantity(Units)1 - 1>1
    Est. Time(days)14To be negotiated
