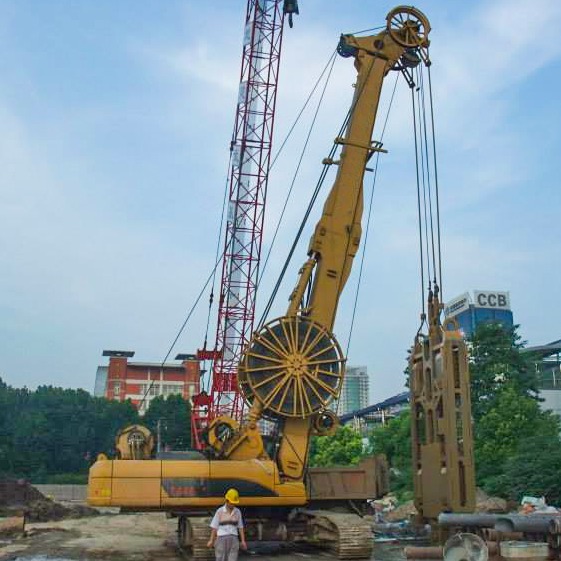

60m Depth 1200mm Width 350Kn Diaphragm Wall Equipment

    Buy cheap 60m Depth 1200mm Width 350Kn Diaphragm Wall Equipment from wholesalers

    Buy cheap 60m Depth 1200mm Width 350Kn Diaphragm Wall Equipment from wholesalers
    • Buy cheap 60m Depth 1200mm Width 350Kn Diaphragm Wall Equipment from wholesalers
    • Buy cheap 60m Depth 1200mm Width 350Kn Diaphragm Wall Equipment from wholesalers

    60m Depth 1200mm Width 350Kn Diaphragm Wall Equipment

    Ask Lasest Price
    Brand Name : SINOVO
    Model Number : TG35
    Certification : CE/GOST/ISO9001
    Price : Negotiation
    Payment Terms : L/C, D/A
    Supply Ability : 30 set per month
    Delivery Time : 7-10 work days
    • Product Details
    • Company Profile

    60m Depth 1200mm Width 350Kn Diaphragm Wall Equipment

    60m Depth 1200mm Width Diaphragm Wall Equipment


    Diaphragm walls are underground structural elements principally used for retention systems and permanent foundation walls. Our TG series hydraulic diaphragm wall grabs are ideal forpit strutting, dam anti-seepage, excavation support, dock cofferdam and foundation element, and are also suitable for the construction of square piles. It is one of the most efficient and versatile construction machines on the market .

    TG 35 Diaphragm Wall Grab Equipment are designed with innovative push-plate alignment system having greater structural superiority as compared with other brands, the homing of grab are easier and faster. With 1-cylinder connecting rod (push plate mechanism) and 2-cylinder connecting rod (4-rod mechanism) zero adjuster, the arm can be calibrated at any time in progress.


    Technical parameters


     Euro StandardsU.S Standards
    Width of trench600-1200mm24-47in
    Depth of trench70m230ft
    Max. pull force400kN89924 lbf
    Volume of grab bucker0.8-1.7 m³0.8-1.7 m³
    Undercarriage ModelCAT336DCAT336D
    Engine power261kW350hp
    Pull force of main winch (The first layer)200kN44962lbf
    Extendable undercarriage (mm)800mm32 in
    Track shoe width3000-4300mm118-170in
    System Pressure35Mpa5076psi

    Performance


    1. Engine power is 261kw, meeting Euro III emission sandard, high power and high durability. Provide stable and reliable power for diaphragm wall grab.
    2. Energy saving and consumption reduction: variable weight frame configuration, weight range 18-25T.
    3. The upper chassis has a reinforced structure design, and the thickness of the bottom plate is 60mm,which is special for heavy type frame.
    4. Center installed winch design, with a compact and reasonable structure, easy maintainence.

    5.Adopts full hydraulic pressure control mode,the system is stable, high reliability.
    6.The push board type grab has advanced vertical adjustment system and simple structure (framework).

    Packaging & Delivery
    Packaging Details
    Nude Packing or by Container.
    Port
    Tianjin/Shanghai
    Lead Time :
    Quantity(Units)1 - 1>1
    Est. Time(days)30To be negotiated
