Brand Name : | SINOVO |
Model Number : | Drilling Buckets |
Certification : | CE/GOST/ISO9001 |
Price : | Negotiation |
Payment Terms : | L/C, D/A, D/P, T/T |
Supply Ability : | 30000 per year |
Delivery Time : | 7-10 days |

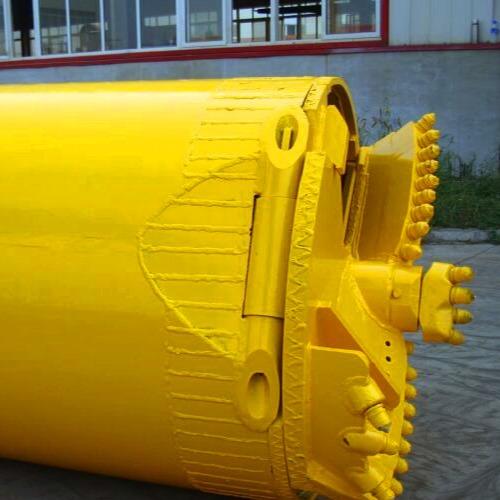

2500mm Dia 800mm Height Bauer Standard Drilling Buckets
Technical Parameters
Diameter (mm) | Connection | Bucket height (mm) | Bucket wall thickness(mm) | Base plate thickness(mm) | Cutting plate thickness(mm) | Teeth quantity | Weight |
φ600 | Bauer | 1200 | 16 | 40 | 50 | 11 | 870 |
φ800 | Bauer | 1200 | 16 | 40 | 50 | 14 | 1151 |
φ1000 | Bauer | 1200 | 16 | 40 | 50 | 20 | 1382 |
φ1200 | Bauer | 1200 | 16 | 40 | 50 | 26 | 1778 |
φ1500 | Bauer | 1200 | 16 | 40 | 50 | 28 | 2295 |
φ1800 | Bauer | 1000 | 16 | 50 | 50 | 32 | 3042 |
φ2000 | Bauer | 800 | 20 | 50 | 50 | 36 | 3850 |
φ2200 | Bauer | 800 | 20 | 50 | 50 | 38 | 4670 |
φ2500 | Bauer | 800 | 20 | 40(box type) | 40(box type) | 40 | 6060 |
2. Double-bottom Double-cut Drilling Bucket(Cone)
Diameter (mm) | Connection | Bucket height (mm) | Bucket wall thickness(mm) | Base plate thickness(mm) | Cutting plate thickness(mm) | Teeth quantity | Weight |
φ600 | Bauer | 1200 | 16 | 40 | 50 | 11 | 850 |
φ800 | Bauer | 1200 | 16 | 40 | 50 | 14 | 1126 |
φ1000 | Bauer | 1200 | 16 | 40 | 50 | 20 | 1350 |
φ1200 | Bauer | 1200 | 16 | 40 | 50 | 26 | 1740 |
φ1500 | Bauer | 1200 | 16 | 40 | 50 | 28 | 2251 |
φ1800 | Bauer | 1000 | 16 | 50 | 50 | 32 | 3042 |
φ2000 | Bauer | 800 | 20 | 50 | 50 | 36 | 3850 |
φ2200 | Bauer | 800 | 20 | 50 | 50 | 38 | 4670 |
φ2500 | Bauer | 800 | 20 | 40(box type) | 40(box type) | 40 | 6060 |
3. Double-bottom Double-cut Shale Drilling Bucket
Diameter (mm) | Connection | Bucket height (mm) | Bucket wall thickness(mm) | Base plate thickness(mm) | Cutting plate thickness(mm) | Teeth quantity | Weight |
φ600 | Bauer | 1200 | 16 | 40 | 50 | 11 | 836 |
φ800 | Bauer | 1200 | 16 | 40 | 50 | 14 | 1100 |
φ1000 | Bauer | 1200 | 16 | 40 | 50 | 20 | 1314 |
φ1200 | Bauer | 1200 | 16 | 40 | 50 | 26 | 1702 |
φ1500 | Bauer | 1200 | 16 | 40 | 50 | 28 | 2200 |
φ1800 | Bauer | 1000 | 16 | 50 | 50 | 32 | 2985 |
φ2000 | Bauer | 800 | 20 | 50 | 50 | 36 | 3780 |
φ2200 | Bauer | 800 | 20 | 50 | 50 | 38 | 4590 |
φ2500 | Bauer | 800 | 20 | 40(box type) | 40(box type) | 40 | 5975 |
Any further information about the specification, after sale service, price,etc, please feel free to contact with us.
![]() |
