    TG35 Crawler Mounted Hydraulic Underground Rotary Drilling Diaphragm Wall Grab

    TG35 Crawler Mounted Hydraulic Hydraulic Underground Rotary Drilling Diaphragm Wall Grab


    Diaphragm walls are underground structural elements principally used for retention systems and permanent foundation walls. Our TG series hydraulic diaphragm wall grabs are ideal forpit strutting, dam anti-seepage, excavation support, dock cofferdam and foundation element, and are also suitable for the construction of square piles. It is one of the most efficient and versatile construction machines on the market .

    TG 35 Diaphragm Wall Grab Equipment are designed with innovative push-plate alignment system having greater structural superiority as compared with other brands, the homing of grab are easier and faster. With 1-cylinder connecting rod (push plate mechanism) and 2-cylinder connecting rod (4-rod mechanism) zero adjuster, the arm can be calibrated at any time in progress.


    TG Summary
    TGWall thickness
    -mm-
    Wall depth
    -m-
    Engine Power
    -kw-
    TG26300-800mm(12-31in)50m(164ft)187KW(251HP)
    TG35600-1000mm(24-39in)60m(197ft)213KW(286HP)
    TG40600-1200mm(24-47in)70m(230ft)261KW(350HP)
    TG42600-1500mm(24-59in)80m(262ft)261KW(350HP)
    TG50800-1500mm(31-59in)80m(262ft)261KW(350HP)

    Technical parameters


     Euro StandardsU.S Standards
    Width of trench600-1200mm24-47in
    Depth of trench70m230ft
    Max. pull force400kN89924 lbf
    Volume of grab bucker0.8-1.7 m³0.8-1.7 m³
    Undercarriage ModelCAT336DCAT336D
    Engine power261kW350hp
    Pull force of main winch (The first layer)200kN44962lbf
    Extendable undercarriage (mm)800mm32 in
    Track shoe width3000-4300mm118-170in
    System Pressure35Mpa5076psi

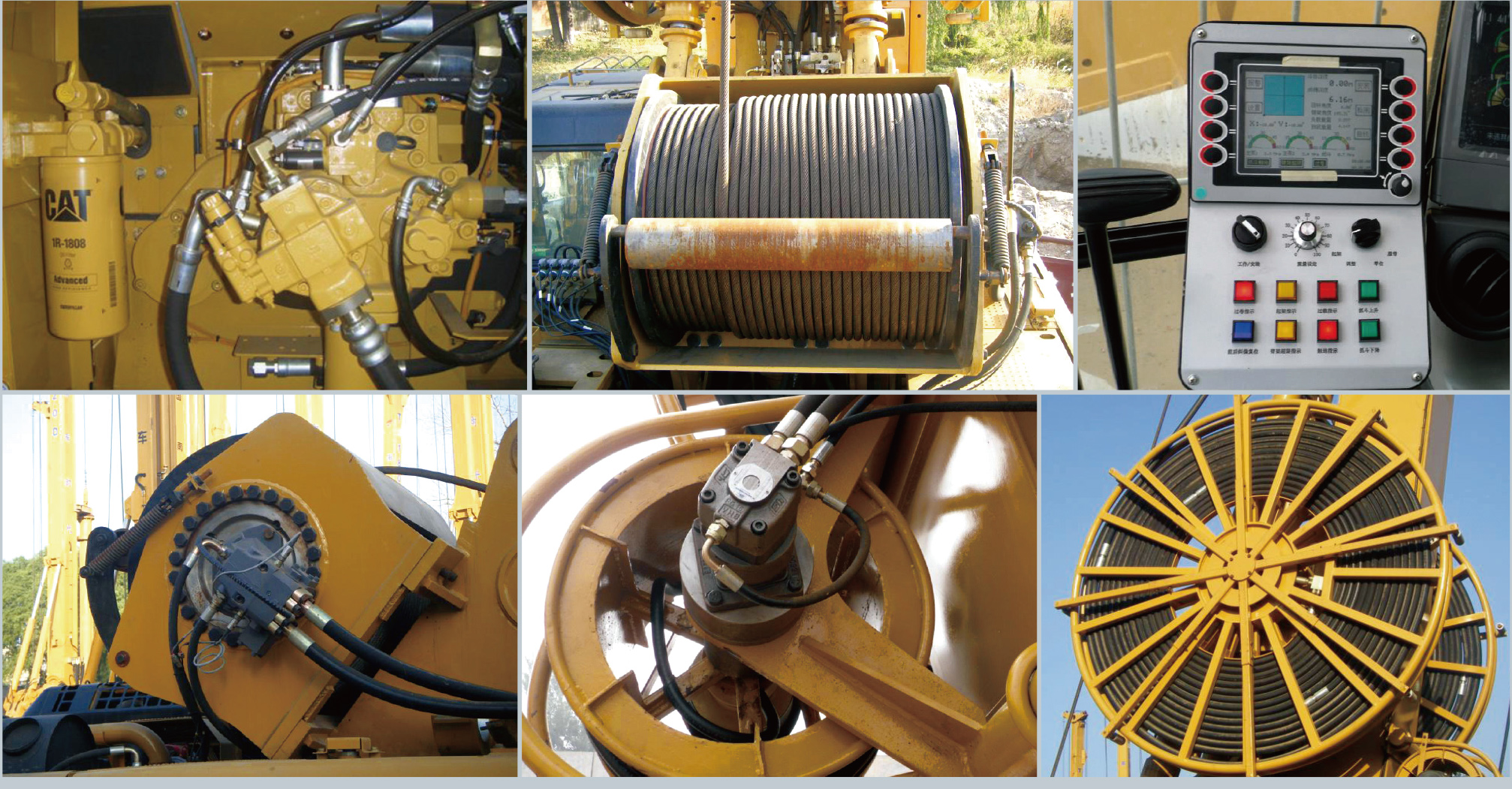

    Performance


    1. Engine power is 261kw, meeting Euro III emission sandard, high power and high durability. Provide stable and reliable power for diaphragm wall grab.
    2. Energy saving and consumption reduction: variable weight frame configuration, weight range 18-25T.
    3. The upper chassis has a reinforced structure design, and the thickness of the bottom plate is 60mm,which is special for heavy type frame.
    4. Center installed winch design, with a compact and reasonable structure, easy maintainence.

    5.Adopts full hydraulic pressure control mode,the system is stable, high reliability.
    6.The push board type grab has advanced vertical adjustment system and simple structure (framework).

    7. Simply operated with less staff, reduce the construction cost.

    8. Low noise operation.

    9. Excellent design brings customers optimal benefits.

    Packaging & Delivery
    Packaging Details
    Nude Packing or by Container.
    Port
    Tianjin/Shanghai
    Lead Time :
    Quantity(Units)1 - 1>1
    Est. Time(days)30To be negotiated

    FAQ


    Q1: Do you have testing facilities?
    A1: Yes, our factory has all kinds of testing facilities, and we can send their pictures and test documents to you.
    Q2: Will you arrange installation and training?
    A2: Yes, our professional engineers will guide on installation and commissioning at site and provide technical training as well.

    Q3:Which payment terms can you accept?
    A3: Normally we can work on T/T term or L/C term, sometime DP term.
    (1) On T/T term. 30% down paymentis required in advance, and 70% balance shallbe se tee before shipment. or against the copy of original B/L for long term cooperating client.
    (2) On L/C term, a 100% irevocable L/C without "soft clauses" from an international recognized bank can be accepted. Please seek the advice from the individual sales manager whom you work with.
    Q4: What logistics ways you can work for shipment?
    A4: We can ship construction machinery by vanious transportation tools.
    (1) For 80% of our shipment, the machine will go by sea, to all main continents such as Africa, South America, Middle East,
    Oceania and Southeast Asia etc, either by container or RoRo/Bulk shipment.
    (2) For inland neighborhood counties of China, such as Russia, Mongolia Turkmenistan etc., we can send machines by road or railway.
    (3) For light spare parts in urgent demand, we can send it by intemational courier service, such as DHL, TNT, or Fedex.
