    St-600 Mobile Crawler Type Geological Drilling Rig

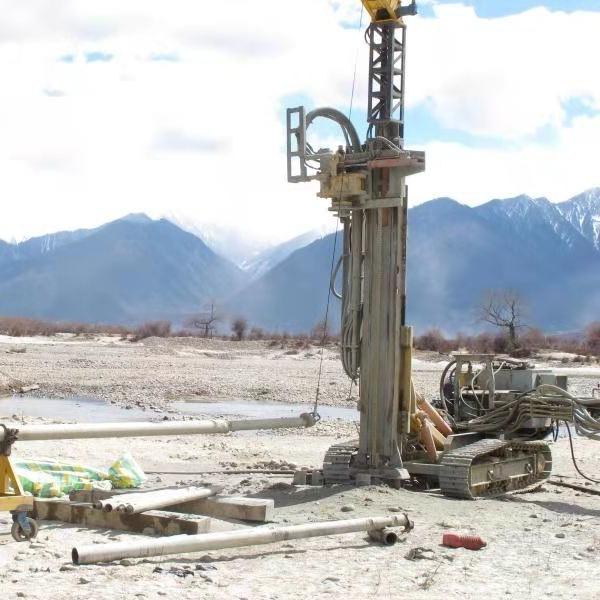

    ST-600 Mobile Crawler Type Geological Drilling Rig


    Our ST-600 mobile crawler type geological drilling rig is a hydraulic rotary head mobile geo rig. Its mobility and light weight makes this rig convenient to transport and store. Our drilling rig is available in various specifications to suit your varying requirements.


    ST-600 mobile crawler type geological drilling rig is a kind of full hydraulic driving drilling equipment installed on the chassis of diesel truck.It is increasingly used for diamond bit drilling and carbide bit drilling of solid bed, and also used in exploring drilling and base or pile hole drilling and the small water well drilling.


    Sinovo is a ISO9001;2000 certified manufacturer of mobile drilling rigs.Our primary products include piling rigs, desanders, and hydraulic crawler drills etc.Due to their high performance, great stability and long service life, our products are CE certified. Located om Beijing, we enjoy convenience transportation, so it is easy for customers to ship their products, at lower costs.We welcome you to contact us! Thank you!


    Applications of ST-600 mobile crawler type geological drilling rig:


    -Exploration in shallow holes of mine and seismic exploration drilling.
    -In liquids and natural gas holes drilling.
    -Construction shot drilling.
    -Geological exploration and shallow water well drilling.


    Characteristic


    1. ST-600 mobile crawler type geological drilling rig adopts automatic telescopic drilling tower, which is supported by two oil cylinders and controlled by a group of hydraulic valves. The operation is time-saving and labor-saving, safe and reliable, and creates benefits for users.
    2. The chassis adopts rubber track, which has light weight and low life cycle cost. It can reduce the noise of vehicle running mechanism, reduce the vibration of vehicle body, greatly reduce fuel consumption, and can walk on urban roads without damaging the road surface.
    3. The chassis is equipped with four threaded legs (or hydraulic high legs) for quick and convenient installation and adjustment. It can be used for work plane leveling, loading and unloading vehicles to reduce hoisting cost and improve efficiency. It can be used as auxiliary support when working.


    Technical Parameters


    ST-600 mobile crawler type geological drilling rig


    Technical Parameters
     EURO standardsU.S.standards
    Power (diesel engine )105KW/2200rpm141hp/2200rpm
    Drilling capacityHole Φ75mm600mHole Φ3inch1968feet
    Hole Φ220mm450mHole Φ8.7inch1476feet
    Hole Φ300mm300mHole Φ11.8inch984feet
    Rotary head
    Rotation speeds71-693 rpm71-693 rpm
    Max torque735-4700N.M524-3467lbf.ft
    Hydraulic driving head feeding distance4200mm165inch
    Hydraulic driving head feeding system
    Lifting force60KN13489lbf
    Feeding force43KN9667lbf
    Mast displacement system
    Distance1000mm39inch
    Lifting force80KN17985lbf
    Feeding force54KN12140lbf
    Clamp machine system
    Diameter50-220mm2-8.7inch
    Unscrews machine system
    Torque6000N.m4425lbf.ft
    Winch
    Single rope force30KN6744lbf
    Mud pump
    Diatance100mm3.9inch
    Volume250,145,90,52 L/min55,32,20,11UK gallon/min
    Pressure2.5,4.5,6.0,6.0Mpa363,653,870,870psi
    Total weight12000kg26455lb
