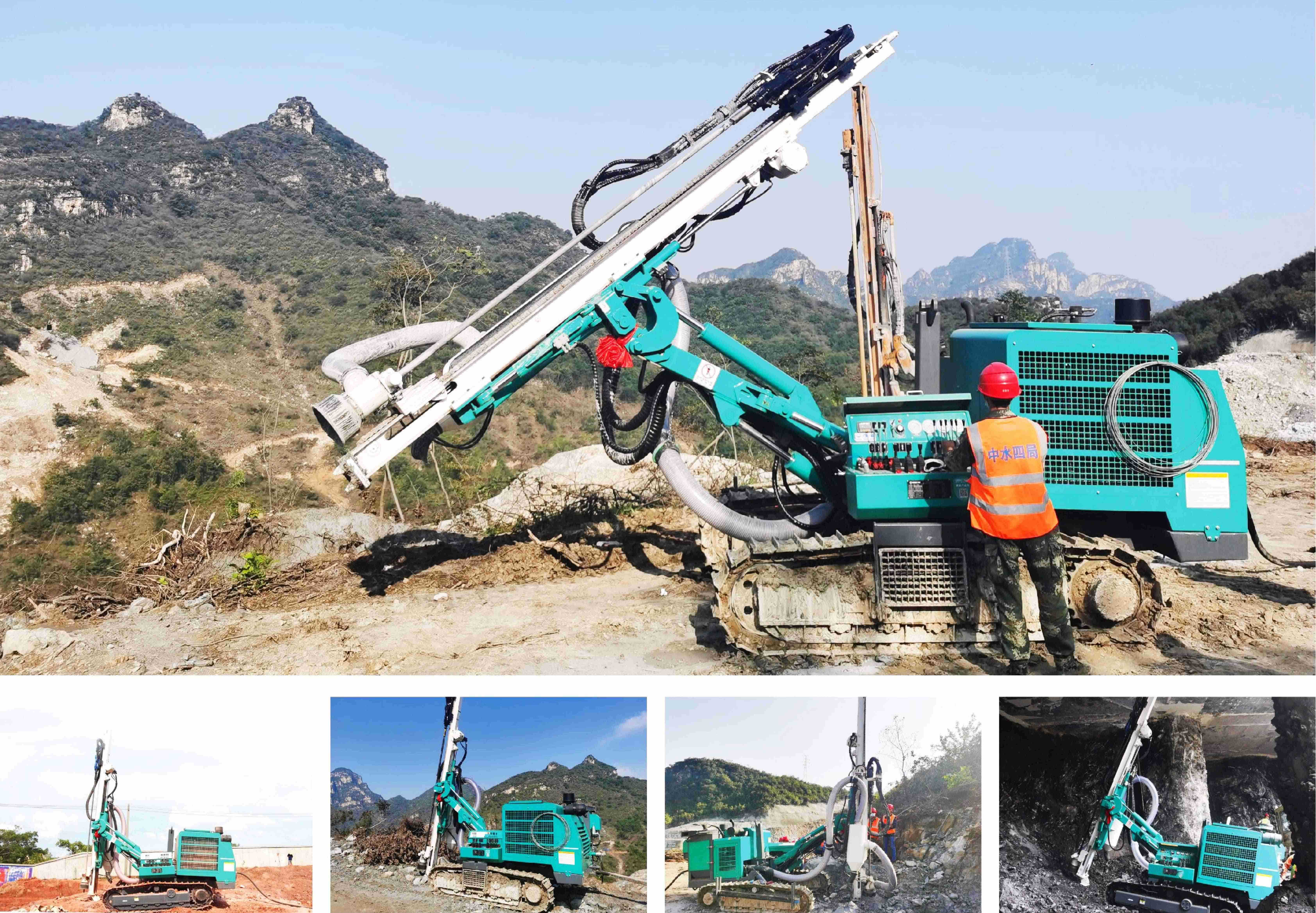

    SK680 Top Hammer Drilling Rig

    SK680 Top Hammer Drilling Rig is designed according to the needs of construction environment of front-line customers and the needs of φ50-90mm small hole diameter.The whole machine is small in size,light in weight,fast in travelling speed and strong in cross-country ability,which can replace the special working conditions that conventional drilling rigs can not operate.
    It is suitable for:static explosion,small hole diameter drug explosion,such as underground mining,underground,construction pits,urban construction sites,tunnels and other environments in the rock drilling and drilling.

    Main specification as following:
    Hole Diameter50-90 mm
    Drazing Rod SpecificationsR32,T38,T45
    Maximum Travel Speed3km/h
    Climbing Ability30°
    Ground Clearance350mm
    Track Pitch Angle±10
    Propulsion Beam Length6080mm
    Propulsion Length4100mm
    Lifting Speed600mm/s
    Maximum Lifting Force2.4T
    Rotation Speed155r/min
    Rotation Torque830Nm
    lmpact Energy300J
    EngineYuchai Off-road National III emission standards
    Rated Power92 kw
    Fuel Tank Capacity90L
    Transport dimensions (LxWxH):6500×2200×2600mm
    Weight6T
    Dust Collectionstandard; drytyp; double stage
    Optionalwaterbome dust collection
