    SK900 Top Drive Anchor Driling Rig

    Ask Lasest Price
    Brand Name : SINOVO
    Model Number : SK900
    • Product Details
    • Company Profile

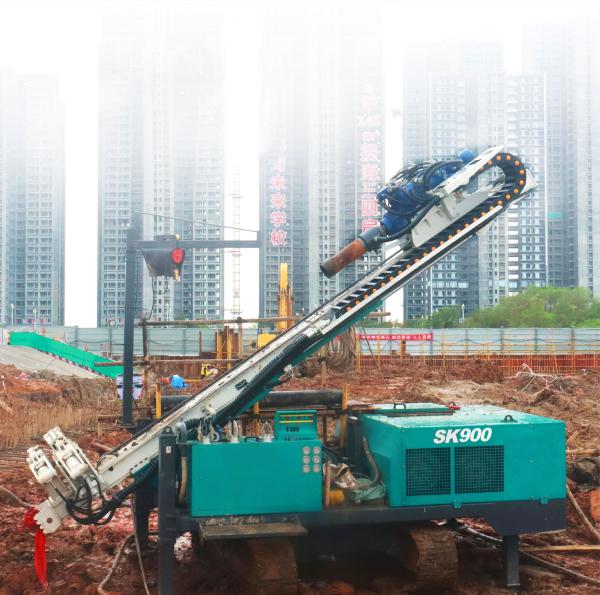

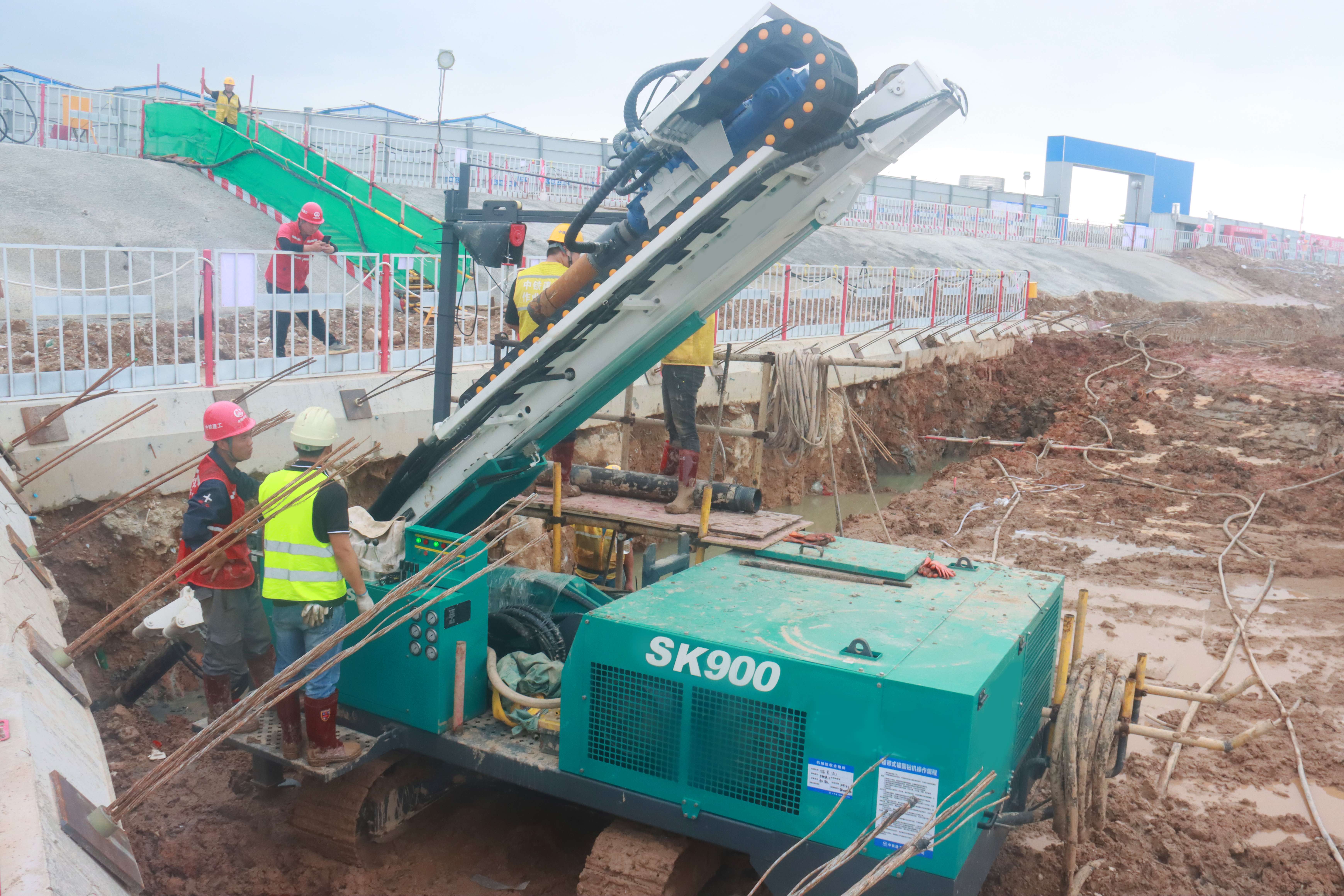

    SK900 Top Drive Anchor Driling Rig

    SK900 Top Drive Anchor Driling Rig power head, adopting high power top
    impact, can achieve the effect of impact drilling without the use of submerged
    hammer and air compressor, with high torque, high rotation speed and
    strong power. For the sand pebbles, gravel, sandy soil, sand laver and other
    formations that areeasy to collapse the hole to rely on percussion drilling, to
    achieve rapid driling to ensure the quality of the hole.

    ModelSK900
    Drilling Rangeφ100-φ250mm
    Maximum Borehole Depth160m
    Maximum Opening Of Rod Clamp300mm
    Rotation Speed0-110r/min
    Rotation Torque15000Nm
    Frame SwivelAngle±179°
    Frame Height From The Ground335mm
    Oil Pressure180bar
    Oil Flow130l/min
    Frequency2500bpm
    Percussion Energy800Nm
    Single Actuation Stroke3600mm
    Horizontal Bore Height3000mm
    Compensating Stroke Of The Thrust Beam1260mm
    Maximum Lifting Force10T
    Maximum Propulsion4T
    Fastest Boost Speed23M/min
    Maximum Propulsion Speed50M/min
    Overall Power(Electric)55kw+55kw
    Input Voltage380V 50Hz
    Transport dimensions (LxWxH):6600×2200×2600mm
    Weight10T
